Coin cell batteries are used in a wide range of everyday applications, from watches and calculators to car keys and computer motherboards, and these small power supplies provide indispensable energy for a variety of small electronic devices. Among the many coin cell battery models, CR2025 and CR2032 are particularly common, and although they are similar in appearance, they actually have many differences in performance, specifications, and application scenarios.
Basic information about CR2025 and CR2032 button batteries
Battery naming convention
CR2025 and CR2032 are in the model naming rules of button batteries. "C" represents that the battery uses lithium-manganese dioxide as the active material, and "R" indicates that the battery is round in shape. The "20" clarifies that the diameter of these two batteries is 20mm. The difference lies in the last "25" and "32", which correspond to the thickness of the battery, CR2025 is 2.5mm thick, and CR2032 is 3.2mm thick.

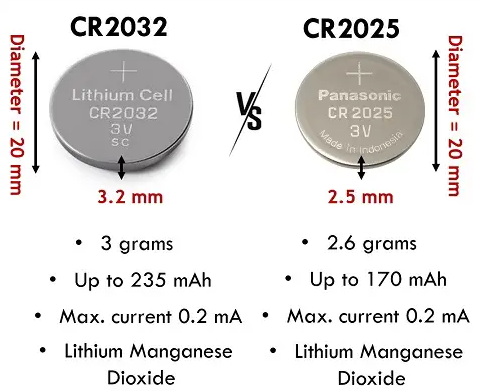

Appearance and size differences
In terms of appearance, CR2025 and CR2032 button batteries are very similar, both are round and have a silver metallic luster. But if you look closely, there is still a clear difference in thickness. CR2032 is relatively thicker and slightly larger in volume than CR2025. Although the size difference may seem small, it has an important impact on the actual application of the battery. In some electronic devices with extremely demanding space requirements, the thin size of CR2025 can be easily adapted, while the thicker CR2032 may not be installed. Some smart watches or small calculators with ultra-thin designs usually use CR2025 batteries due to limited internal space.
Click Here To Shop Online For CR2025 Batteries
Click Here To Shop Online For CR2032 Batteries
Comparison of CR2025 and CR2032 battery performance parameters
1. Capacity comparison
Battery capacity is a key indicator of a battery's ability to store electricity, measured in milliampere hours (mAh). The capacity of a CR2032 is generally between 220mAh and 240mAh, while the capacity of a CR2025 is relatively low, usually in the range of 150mAh to 170mAh. The difference in capacity means that the CR2032 can store more electricity and provide longer-lasting power support for the device. Under normal use, car keys using CR2032 batteries may have a longer battery replacement cycle than car keys using CR2025 batteries. This is because car keys consume a certain amount of power to send a signal every time a button is pressed, and the higher capacity of the CR2032 enables it to withstand more signal transmissions, which can extend the overall usage time.
2. Discharge current comparison
Different electronic devices have different current requirements during operation, and the discharge current capacity of the battery determines whether it can stably power the device. CR2032 can withstand a maximum continuous current of 20mA, while CR2025 can usually only withstand a discharge current of 10mA. For some high-power devices that require a large current during operation, such as laser pens or certain models of wireless mice, CR2032 can better meet their current requirements and ensure stable operation of the device. If CR2025 batteries are used in these devices, due to their limited discharge current capacity, the device may malfunction, such as unstable light from the laser pen, delays or failures in the wireless mouse, etc.
3. Comparison of voltage characteristics
The nominal voltage of CR2025 and CR2032 is 3V, which is consistent with each other. However, in actual use, as the battery power is gradually consumed, its output voltage will change. In the early stage of battery discharge, the voltage drop trend of both is relatively gentle, but when the power is close to exhaustion, the voltage drop rate of CR2025 may be relatively faster. This means that in some equipment with high voltage stability requirements, such as some high-precision medical equipment or electronic measuring instruments, CR2032 can maintain a relatively stable voltage output for a longer time to ensure the accurate operation of the equipment. Using CR2025 batteries may need to be replaced more frequently to ensure that the equipment does not have measurement errors or other failures due to low voltage.
Differences in application scenarios between CR2025 and CR2023 batteries
Common applications of CR2025
1. Small portable devices: CR2025 batteries are small and light, suitable for powering small portable devices. For example, laser pens have limited internal space, so they can be easily adapted to provide stable power for laser pens and emit clear laser beams. There are also some small sensors in fitness equipment, such as pedometers and heart rate monitors. Since these devices usually need to be worn for a long time, there are strict requirements on the size and weight of the battery. With its small size, it provides reliable power to the device without increasing the burden on the device, ensuring that the device can continuously and accurately monitor the user's exercise data.
2. Electronic products with strict space requirements: In some ultra-thin electronic products, the internal space is extremely limited. CR2025 can be installed in a small space to provide stable power for the calculator to ensure the normal operation of various complex calculation functions. For some small electronic toys, in order to pursue a small and exquisite appearance, CR2025 batteries are usually selected. This not only meets the toy's demand for power, but also does not affect the overall design and portability of the toy.
Common applications of CR2032
1. High-power electronic devices: CR2032 batteries have high capacity and large discharge current tolerance, and are widely used in high-power electronic devices. When we use the car key, press the unlock or lock button on the key, and the car key needs to emit a strong signal to communicate with the vehicle, which consumes a large current. It can easily meet this current demand, ensure the stable transmission of the signal, and allow us to unlock or lock the car door smoothly.
2. Equipment with high battery life requirements: For some equipment that needs to run continuously for a long time and it is not convenient to replace the battery, such as the CMOS battery on the computer motherboard, its main function is to continue to power the BIOS chip after the computer is turned off to save the basic settings of the computer, such as time, date, startup sequence and other information. Since there is relatively ample space on the computer motherboard, and the CMOS battery needs to have a long battery life to reduce the frequency of battery replacement, the higher capacity of CR2032 enables it to meet this demand. Generally speaking, a CR2032 CMOS battery can be used for several years, providing a reliable guarantee for the stable operation of the computer.
Precautions when replacing batteries
1. Choose the right battery model
When replacing a CR2025 or CR2032 button battery, you should strictly follow the instructions in the device's manual to select the correct battery model. If you mistakenly install a CR2025 in a device that should have used a CR2032, the device may not work properly or the battery life may be greatly shortened due to the low capacity and limited discharge current tolerance of the CR2025. On the contrary, if a CR2032 is installed in a small space that can only accommodate a CR2025, it may not be installed due to size mismatches, and may even damage the device's battery slot. Therefore, before replacing the battery, it is very important to carefully confirm the battery model required by the device.
2. Installation and removal points
When removing old batteries, use appropriate tools and avoid direct contact with the batteries with your hands to prevent sweat and other impurities on your hands from corroding the batteries or the battery slot of the device. For button batteries such as CR2025 and CR2032, the battery slot generally has a fixed structure. Be careful during the disassembly process and remove the old batteries in the correct direction and manner to avoid damaging the battery slot due to improper force. When installing new batteries, pay attention to the positive and negative directions of the batteries. Both CR2025 and CR2032 batteries have clear positive and negative markings. The positive pole is generally marked with a "+" sign, and the negative pole is relatively flat. Make sure that the positive and negative poles are installed correctly. If they are installed upside down, the battery will not only fail to power the device, but may also cause a short circuit in the battery, damaging the battery and the device. After installation, press the battery gently to ensure that it is firmly installed and in good contact with the battery slot.
