Type | Description |
---|---|
Series: | 380LX |
Package: | Bulk |
Part Status: | Active |
Capacitance: | 2200 µF |
Tolerance: | ±20% |
Voltage - Rated: | 80 V |
ESR (Equivalent Series Resistance): | 754mOhm @ 120Hz |
Lifetime @ Temp.: | 3000 Hrs @ 85°C |
Operating Temperature: | -40°C ~ 85°C |
Polarization: | Polar |
Ratings: | - |
Applications: | General Purpose |
Ripple Current @ Low Frequency: | 1.4 A @ 120 Hz |
Ripple Current @ High Frequency: | - |
Impedance: | - |
Lead Spacing: | 0.394" (10.00mm) |
Size / Dimension: | 0.866" Dia (22.00mm) |
Height - Seated (Max): | 1.850" (47.00mm) |
Surface Mount Land Size: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Can - Snap-In |

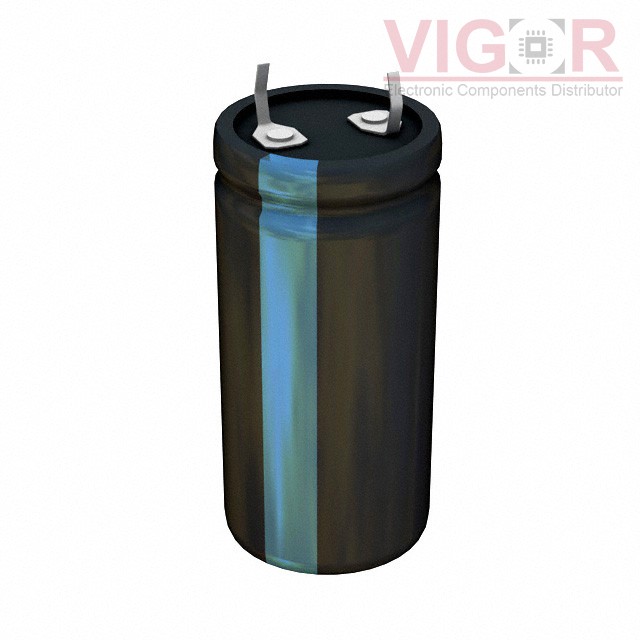

CAP ALUM 2200UF 20% 80V SNAP
