Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of RXK222M1EBK-1335S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

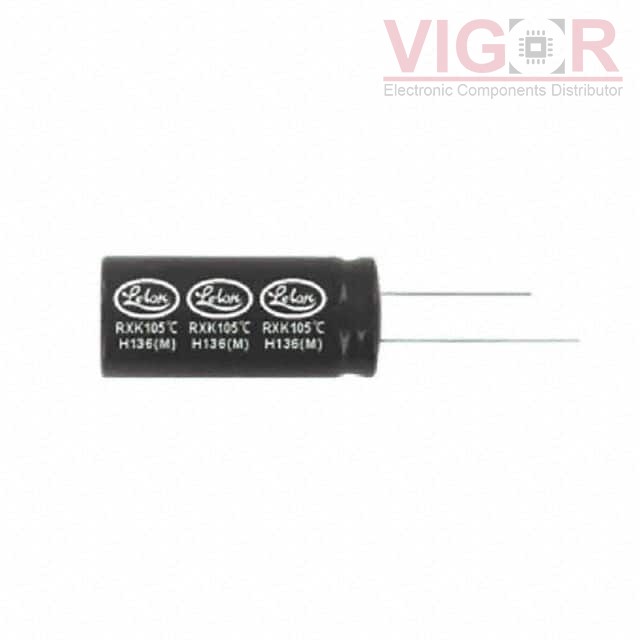

Type | Description |
---|---|
Series: | RXK |
Package: | BulkBag |
Part Status: | Active |
Capacitance: | 2200 µF |
Tolerance: | ±20% |
Voltage - Rated: | 25 V |
ESR (Equivalent Series Resistance): | - |
Lifetime @ Temp.: | 5000 Hrs @ 105°C |
Operating Temperature: | -55°C ~ 105°C |
Polarization: | Polar |
Ratings: | - |
Applications: | General Purpose |
Ripple Current @ Low Frequency: | 2.151 A @ 120 Hz |
Ripple Current @ High Frequency: | 2.39 A @ 100 kHz |
Impedance: | 27 mOhms |
Lead Spacing: | 0.197" (5.00mm) |
Size / Dimension: | 0.492" Dia (12.50mm) |
Height - Seated (Max): | 1.457" (37.00mm) |
Surface Mount Land Size: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Can |
