BWCS0023171522NG00

BWCS0023171522NG00

Image is for reference,
please contact us to get the real picture

Part No :

BWCS0023171522NG00

Manufacturer
Chilisin Electronics
Description
FIXED IND 22NH 500MA 220MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
BWCS0023171522NG00 PDF
Availability
3650 pieces
Unit Price
$0.12000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of BWCS0023171522NG00 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

BWCS0023171522NG00 Specifications
Type Description
Series:BWCS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:22 nH
Tolerance:±2%
Current Rating (Amps):500 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):220mOhm Max
Q @ Freq:55 @ 500MHz
Frequency - Self Resonant:2.6GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:0907
Size / Dimension:0.093" L x 0.068" W (2.35mm x 1.73mm)
Height - Seated (Max):0.060" (1.52mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SBC9-331-671

SBC9-331-671

FIXED IND 330UH 670MA 580 MOHM

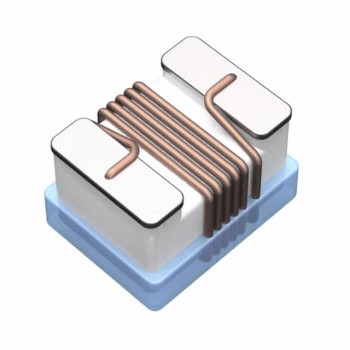

HOT 0805CS-301EJTS

0805CS-301EJTS

FIXED IND 300NH 330MA 1.2 OHM

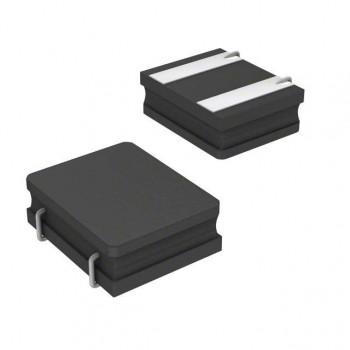

HOT LQH2HPZR47MGRL
