BWVS00808040220M00

BWVS00808040220M00

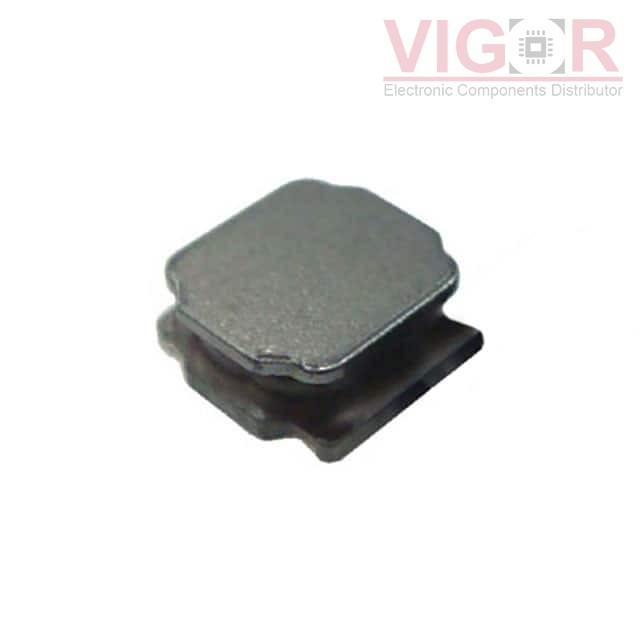

Image is for reference,
please contact us to get the real picture

Part No :

BWVS00808040220M00

Manufacturer
Chilisin Electronics
Description
FIXED IND 22UH 2.6A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
BWVS00808040220M00 PDF
Availability
2313 pieces
Unit Price
$0.44000

Current price of BWVS00808040220M00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BWVS00808040220M00 Specifications
Type Description
Series:BWVS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):2.6 A
Current - Saturation (Isat):2.8A
Shielding:Shielded
DC Resistance (DCR):80mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):0.165" (4.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NRM6045T6R8MMRRV

NRM6045T6R8MMRRV

FIXED INUCTOR 6.8UH 52M OHM SMD
HOT MCQ1V2012-R270-R

MCQ1V2012-R270-R

FIXED IND 270NH 250MA 400 MOHM

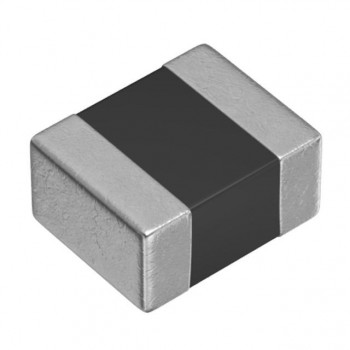

HOT MLP2520H2R2ST
