Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0402HP-400EJTS is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

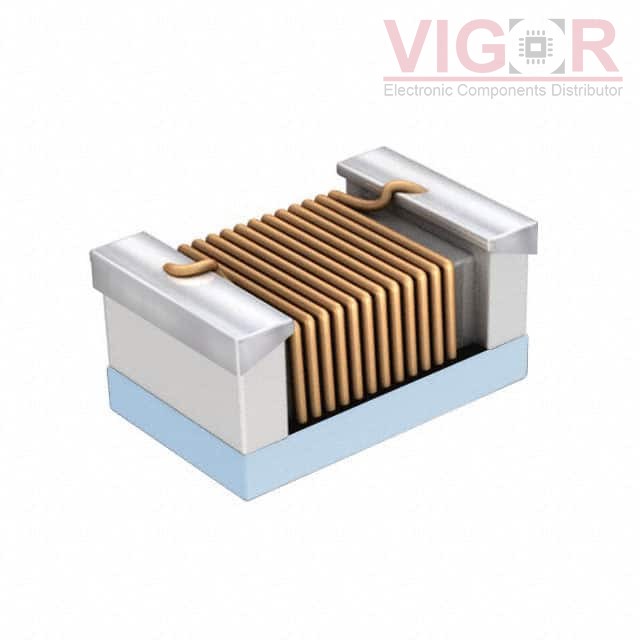

Type | Description |
---|---|
Series: | 0402HP |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Wirewound |
Material - Core: | Ceramic |
Inductance: | 40 nH |
Tolerance: | ±5% |
Current Rating (Amps): | 450 mA |
Current - Saturation (Isat): | - |
Shielding: | Unshielded |
DC Resistance (DCR): | 430mOhm |
Q @ Freq: | - |
Frequency - Self Resonant: | 2.6GHz |
Ratings: | - |
Operating Temperature: | -40°C ~ 125°C |
Inductance Frequency - Test: | 250 MHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | 0402 (1005 Metric) |
Supplier Device Package: | 0402 |
Size / Dimension: | 0.045" L x 0.028" W (1.15mm x 0.70mm) |
Height - Seated (Max): | 0.024" (0.60mm) |
FIXED IND 40NH 450MA 430MOHM SMD
