Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of XPEBGR-L1-0000-00F03-SB01 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | XLamp® XP-E2 |
Package: | Tray |
Part Status: | Not For New Designs |
Type: | LED Module |
Color: | Green |
CCT (K): | - |
Wavelength: | 530nm (525nm ~ 535nm) |
Configuration: | Starboard |
Luminous Flux @ Current/Temperature: | 126lm (122lm ~ 130lm) |
Current - Test: | 350mA |
Temperature - Test: | 25°C |
Voltage - Forward (Vf) (Typ): | 3.2V |
Lumens/Watt @ Current - Test: | 113 lm/W |
Current - Max: | 1A |
CRI (Color Rendering Index): | - |
Viewing Angle: | 135° |
Features: | - |
Size / Dimension: | 19.89mm Dia |
Height: | 2.30mm |
Light Emitting Surface (LES): | - |
Lens Type: | Domed |

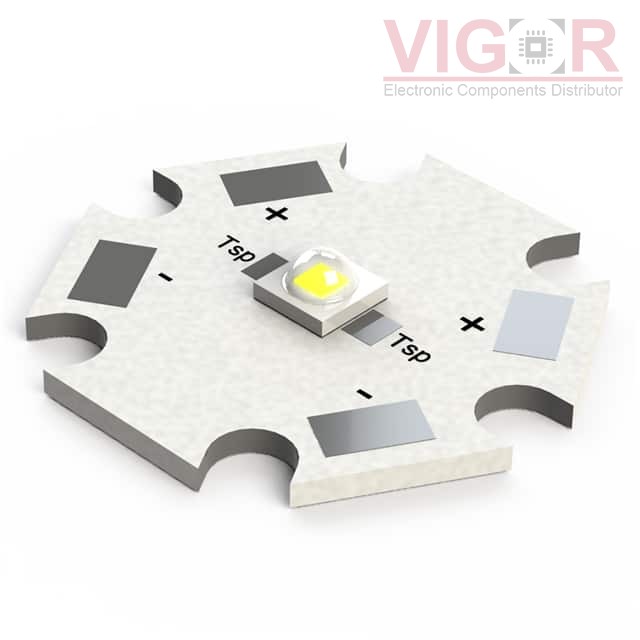

XPEBGR, ROUND, STARBOARD, 1X1, G
