Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of QFWB-18-9-US01 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | QFWB-18 (18W) |
Package: | Bulk |
Part Status: | Active |
Region Utilized: | North America |
Form: | Wall Mount (Class II) |
Input Type: | Fixed Blade |
Voltage - Input: | 100 ~ 240 VAC |
Voltage - Output: | 9V |
Current - Output (Max): | 2A |
Power (Watts): | 18 W |
No Load Power Consumption: | 100mW (Max) |
Polarization: | Positive Center |
Applications: | ITE (Commercial) |
Efficiency: | Level VI |
Operating Temperature: | 0°C ~ 40°C |
Output Connector: | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
Cord Length: | 59" (1.50m) |
Input Connector: | NEMA 1-15P |
Size / Dimension: | 2.81" L x 1.70" W x 1.13" H (71.3mm x 43.3mm x 28.8mm) |
Approval Agency: | cULus |
Standard Number: | - |

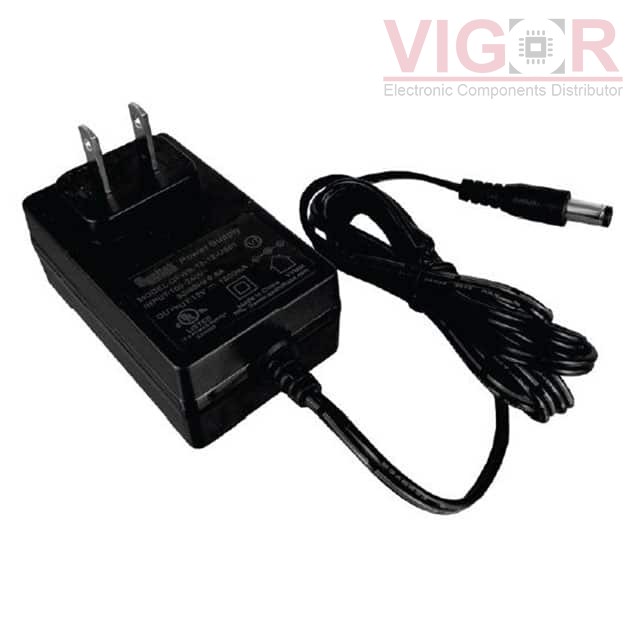

AC/DC WALL MOUNT ADAPTER 9V 18W
