Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of LED50W-048-C1050-D is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | LED-50W |
Package: | Box |
Part Status: | Obsolete |
Type: | Constant Current |
Topology: | AC DC Converter |
Number of Outputs: | 1 |
Voltage - Input (Min): | 90VAC |
Voltage - Input (Max): | 305VAC |
Voltage - Output: | 16 ~ 48V |
Current - Output (Max): | 1.05A |
Power (Watts): | 50 W |
Voltage - Isolation: | - |
Dimming: | Analog |
Features: | OCP, OVP, SCP |
Ratings: | IP66 |
Operating Temperature: | -30°C ~ 60°C |
Efficiency: | 88% |
Termination Style: | Wire Leads |
Size / Dimension: | 7.64" L x 1.69" W x 0.98" H (194.0mm x 43.0mm x 25.0mm) |
Approval Agency: | CE, cULus |
Standard Number: | - |

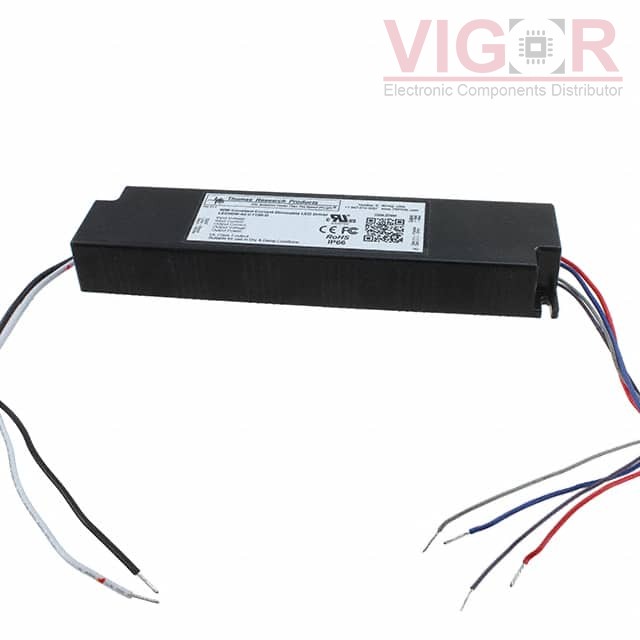

LED DRIVER CC AC/DC 16-48V 1.05A
