TPD1E1B04DPYR

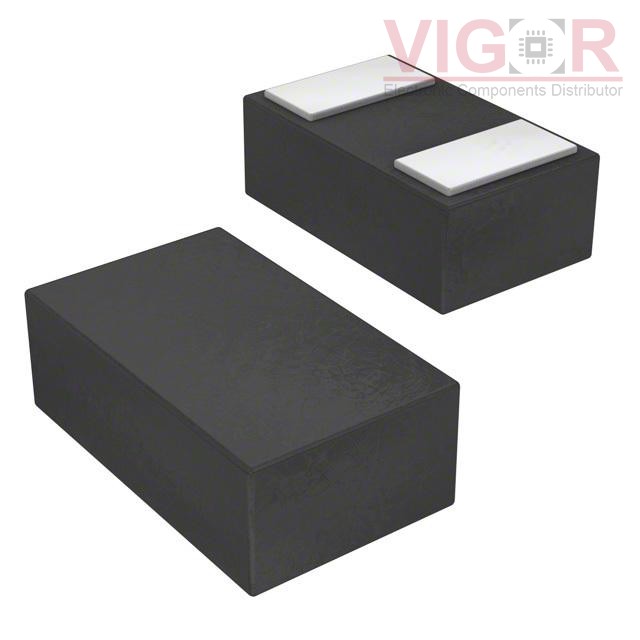

Image is for reference,
please contact us to get the real picture

Part No :: TPD1E1B04DPYR

Manufacturer: Texas Instruments

Description: TVS DIODE 3.6V 8.5V 2X1SON

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TPD1E1B04DPYR PDF

Availability: 0 pieces

Unit Price: ~~$0.37000~~

Current price of TPD1E1B04DPYR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPD1E1B04DPYR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	3.6V (Max)
Voltage - Breakdown (Min):	6.4V (Typ)
Voltage - Clamping (Max) @ Ipp:	8.5V (Typ)
Current - Peak Pulse (10/1000µs):	6.3A (8/20µs)
Power - Peak Pulse:	50W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	1pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	2-X1SON (1x.60)

Please confirm the specifications of the products when ordering.
