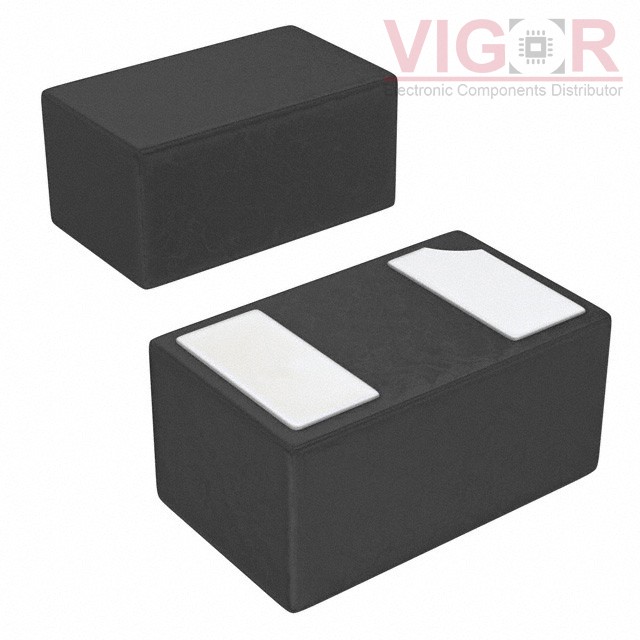

ESDA15P60-1U1M

ESDA15P60-1U1M

Image is for reference,
please contact us to get the real picture

Part No :

ESDA15P60-1U1M

Manufacturer
STMicroelectronics
Description
TVS DIODE 13.2V 22.7V 1610
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ESDA15P60-1U1M PDF
Availability
0 pieces
Unit Price
$0.13860

Current price of ESDA15P60-1U1M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESDA15P60-1U1M Specifications
Type Description
Series:ESDA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):13.2V (Max)
Voltage - Breakdown (Min):13.6V
Voltage - Clamping (Max) @ Ipp:22.7V
Current - Peak Pulse (10/1000µs):57A (8/20µs)
Power - Peak Pulse:1200W (1.2kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:2-UDFN
Supplier Device Package:1610
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

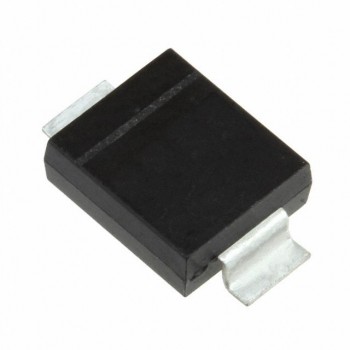

HOT MSMCG8.0A

MSMCG8.0A

TVS DIODE 8V 13.6V DO215AB

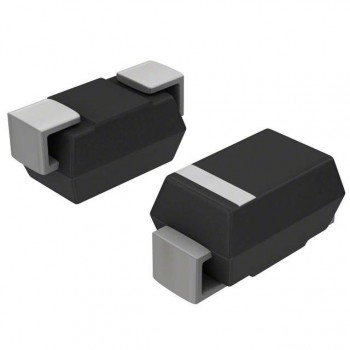

HOT MASMBJ26CA

MASMBJ26CA

TVS DIODE 26V 42.1V DO214AA

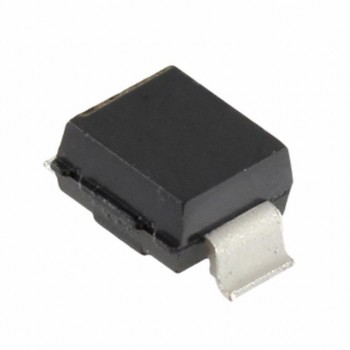

HOT MXLSMBG20CAE3
