DM5W22AQ-13

DM5W22AQ-13

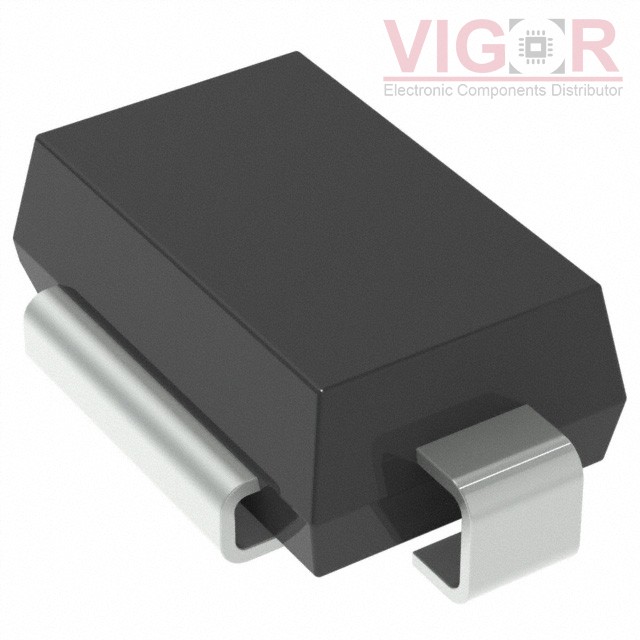

Image is for reference,
please contact us to get the real picture

Part No :

DM5W22AQ-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANSIENT VOLT SUPPRESSOR DO-218
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
DM5W22AQ-13 PDF
Availability
7226000 pieces
Unit Price
$3.10000

Current price of DM5W22AQ-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DM5W22AQ-13 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):101A
Power - Peak Pulse:3600W (3.6kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-218AB
Supplier Device Package:DO-218
