QM2245LEV-156.25M

QM2245LEV-156.25M

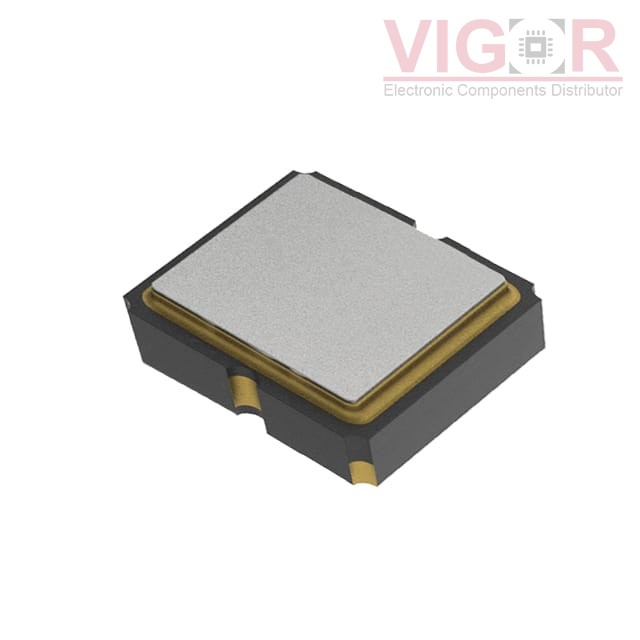

Image is for reference,
please contact us to get the real picture

Part No :

QM2245LEV-156.25M

Manufacturer
Pletronics, Inc.
Description
XTAL OSC XO 156.2500MHZ CMOS TTL
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
QM2245LEV-156.25M PDF
Availability
10000 pieces
Unit Price
$2.03000

Current price of QM2245LEV-156.25M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QM2245LEV-156.25M Specifications
Type Description
Series:PRONTO™ QM22L
Package:Strip
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:156.25 MHz
Function:Enable/Disable
Output:CMOS, TTL
Voltage - Supply:3.3V
Frequency Stability:±50ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):35mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.081" L x 0.065" W (2.05mm x 1.65mm)
Height - Seated (Max):0.033" (0.85mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SIT1602BC-23-18E-37.500000E

SIT1602BC-23-18E-37.500000E

MEMS OSC XO 37.5000MHZ H/LV-CMOS
HOT SiT3372AI-1E2-33NG156.250000X

SiT3372AI-1E2-33NG156.250000X

XTAL OSC VCXO 156.2500MHZ LVPECL

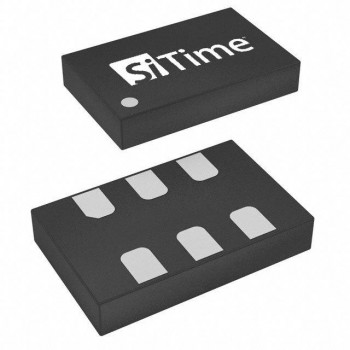

HOT SIT9120AI-2C3-33E156.250000T
