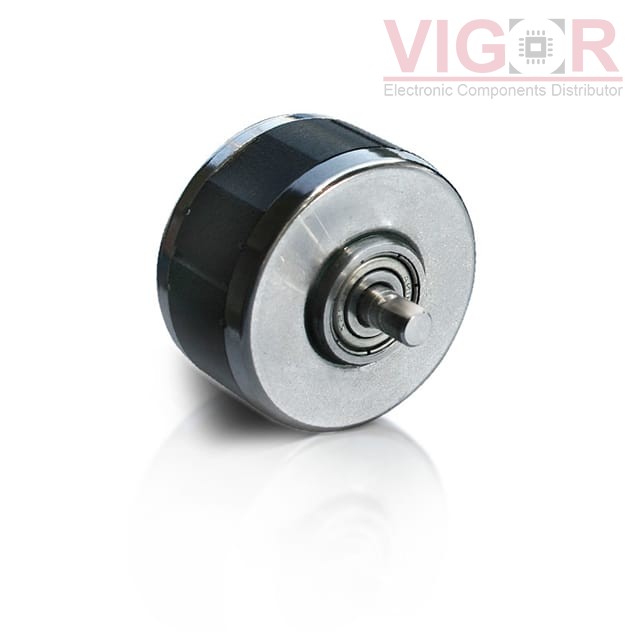

WO-3809X-15

WO-3809X-15

Image is for reference,
please contact us to get the real picture

Part No :

WO-3809X-15

Manufacturer
Lin Engineering
Description
STEPPER MOTOR
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
WO-3809X-15 PDF
Availability
38 pieces
Unit Price
$34.93000

Current price of WO-3809X-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WO-3809X-15 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:-
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):300 mA
Steps per Revolution:400
Step Angle:0.9°
Accuracy:-
Torque - Holding (oz-in / mNm):6 / 42.37
Size / Dimension:Round - 1.429" Dia (36.30mm)
NEMA Frame Size:14
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.591" (15.00mm)
Mounting Hole Spacing:-
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:15.1 Ohms
Features:Round Shaft
