Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of J115F21CL120VACS is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

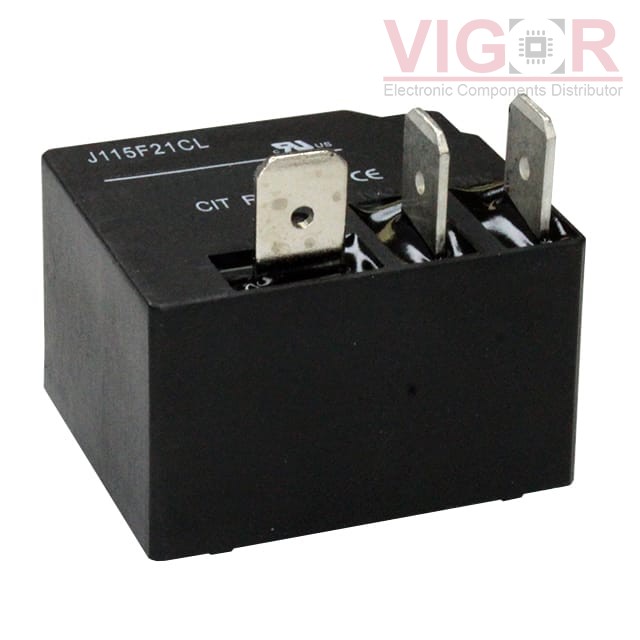

Type | Description |
---|---|
Series: | J115F2 |
Package: | Tube |
Part Status: | Active |
Mounting Type: | Through Hole |
Coil Voltage: | 120VAC |
Contact Form: | SPDT (1 Form C) |
Contact Rating (Current): | 40 A |
Switching Voltage: | 277VAC, 110VDC - Max |
Coil Current: | 39.5 mA |
Coil Type: | Non Latching |
Features: | - |
Termination Style: | PC Pin, Quick Connect - 0.250" (6.3mm) |
Seal Rating: | Sealed - Fully |
Coil Insulation: | Class F |
Must Operate Voltage: | 90 VAC |
Must Release Voltage: | 36 VAC |
Operate Time: | 15 ms |
Release Time: | 10 ms |
Operating Temperature: | -55°C ~ 125°C |
Contact Material: | Silver Tin Oxide (AgSnO) |
Relay Type: | General Purpose |
