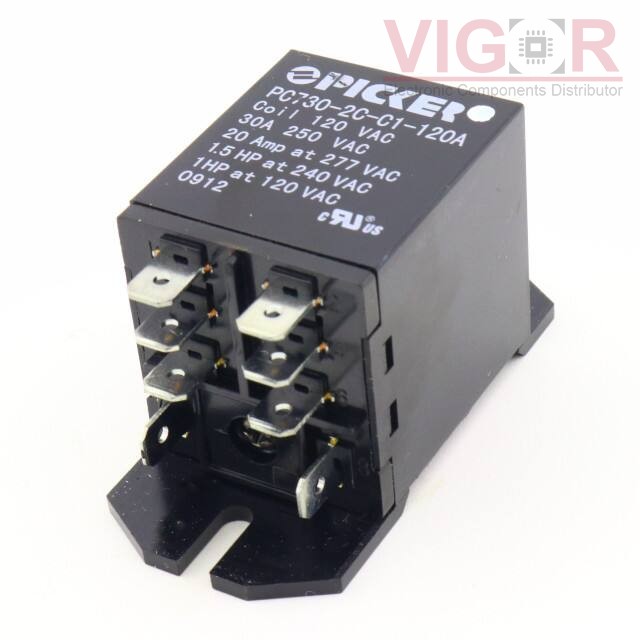

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PC730-2C-C1-120A is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Bag |
Part Status: | Active |
Mounting Type: | Chassis Mount |
Coil Voltage: | 120VAC |
Contact Form: | DPDT (2 Form C) |
Contact Rating (Current): | 30 A |
Switching Voltage: | 330VAC, 36VDC - Max |
Coil Current: | 99.5 mA |
Coil Type: | Non Latching |
Features: | - |
Termination Style: | Quick Connect - 0.250" (6.3mm) |
Seal Rating: | - |
Coil Insulation: | Class B |
Must Operate Voltage: | 96 VAC |
Must Release Voltage: | 36 VAC |
Operate Time: | 25 ms |
Release Time: | 15 ms |
Operating Temperature: | -25°C ~ 55°C |
Contact Material: | Silver Cadmium Oxide (AgCdO) |
Relay Type: | General Purpose |
