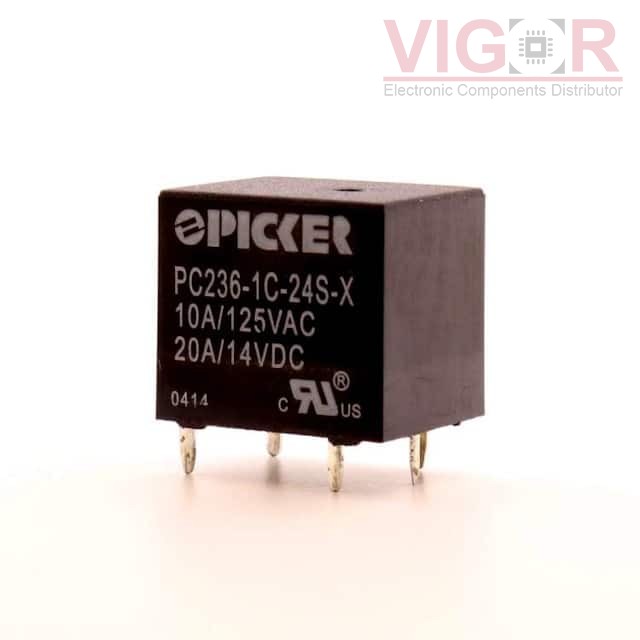

PC236-1C-24S-X

Image is for reference,
please contact us to get the real picture

Part No :: PC236-1C-24S-X

Manufacturer: Picker Components

Description: 10A SPDT SUBMINI PCB RELAY 24V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PC236-1C-24S-X PDF

Availability: 0 pieces

Unit Price: ~~$0.89000~~

Current price of PC236-1C-24S-X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC236-1C-24S-X Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	30 A
Switching Voltage:	380VAC, 42VDC - Max
Coil Current:	25 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class B
Must Operate Voltage:	19.2 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
