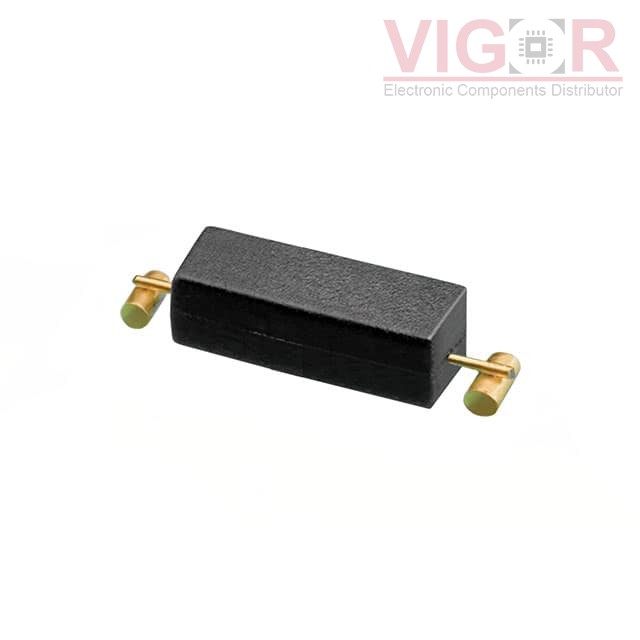

PMC-0508TH1015

PMC-0508TH1015

Image is for reference,
please contact us to get the real picture

Part No :

PMC-0508TH1015

Manufacturer
PIC GmbH
Description
MICRO SMD REED SWITCH PITCH 8.9
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PMC-0508TH1015 PDF
Availability
90 pieces
Unit Price
$6.35000

Current price of PMC-0508TH1015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMC-0508TH1015 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Type:Molded Body
Circuit:SPST-NO
Operate Range:5 ~ 10AT
Release Range:2AT
Current - Switching:250mA (AC/DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:175 V
Power - Rated:5W
Operate Time:0.35 ms
Release Time:0.1 ms
Mounting Type:Surface Mount
Termination Style:Axial
Length - Overall:0.398" (10.11mm)
Size - Body:0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:-
Current - Carry:500mA (AC/DC)
