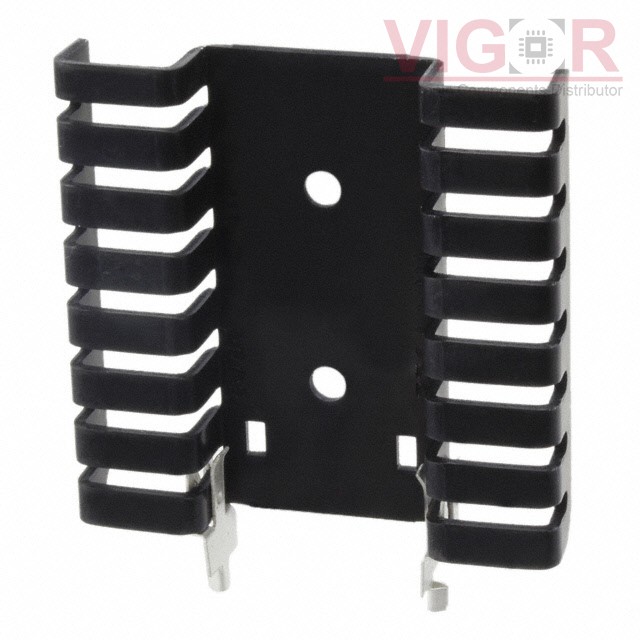

7022B-MTG

Image is for reference,
please contact us to get the real picture

Part No :: 7022B-MTG

Manufacturer: Aavid

Description: HEATSINK TO-220 TAB FOLD 55.12MM

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: 7022B-MTG PDF

Availability: 1872 pieces

Unit Price: ~~$5.13000~~

Current price of 7022B-MTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7022B-MTG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Board Level, Vertical
Package Cooled:	TO-220
Attachment Method:	Bolt On and PC Pin
Shape:	Rectangular, Fins
Length:	1.968" (49.99mm)
Width:	1.986" (50.44mm)
Diameter:	-
Fin Height:	0.375" (9.52mm)
Power Dissipation @ Temperature Rise:	10.0W @ 70°C
Thermal Resistance @ Forced Air Flow:	1.75°C/W @ 800 LFM
Thermal Resistance @ Natural:	6.50°C/W
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

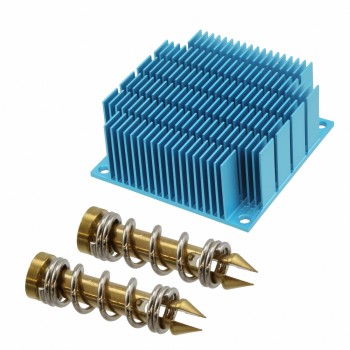

ATS-17H-132-C3-R0

HEATSINK 60X60X25MM XCUT T412

HOT

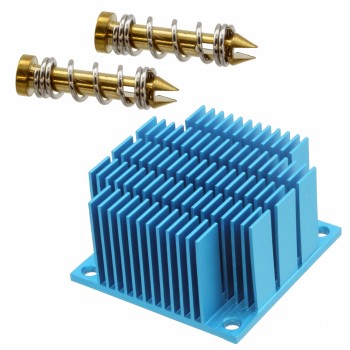

ATS-06E-100-C3-R0

HEATSINK 45X45X25MM R-TAB T412

HOT

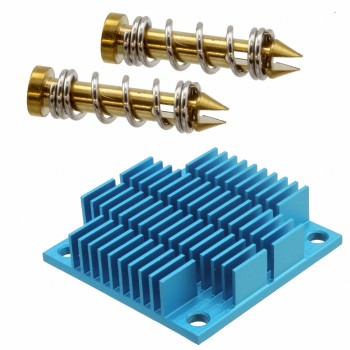

ATS-21E-181-C3-R0
