563002B00000G

563002B00000G

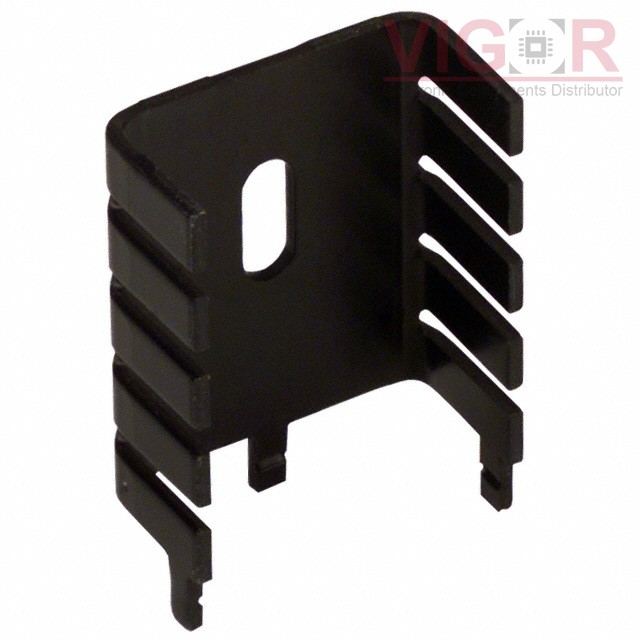

Image is for reference,
please contact us to get the real picture

Part No :

563002B00000G

Manufacturer
Aavid
Description
HEATSINK TO-220 VERT MNT 1.18"
Catalog
Thermal - Heat Sinks
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
563002B00000G PDF
Availability
1786 pieces
Unit Price
$3.34000

Current price of 563002B00000G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

563002B00000G Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Type:Board Level, Vertical
Package Cooled:TO-220
Attachment Method:Bolt On and PC Pin
Shape:Rectangular, Fins
Length:1.180" (29.97mm)
Width:1.000" (25.40mm)
Diameter:-
Fin Height:0.500" (12.70mm)
Power Dissipation @ Temperature Rise:1.0W @ 20°C
Thermal Resistance @ Forced Air Flow:7.00°C/W @ 200 LFM
Thermal Resistance @ Natural:13.00°C/W
Material:Aluminum
Material Finish:Black Anodized
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

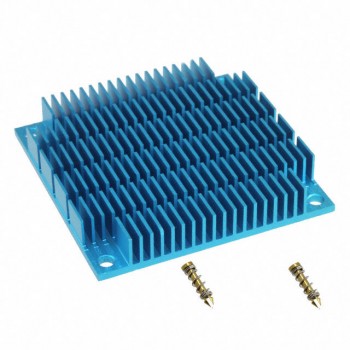

HOT ATS-16D-21-C3-R0

ATS-16D-21-C3-R0

HEATSINK 60X60X10MM XCUT T412

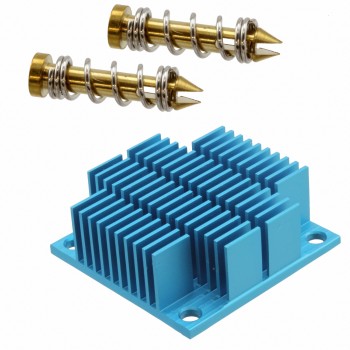

HOT ATS-21E-74-C2-R0

ATS-21E-74-C2-R0

HEATSINK 25X25X15MM R-TAB T766

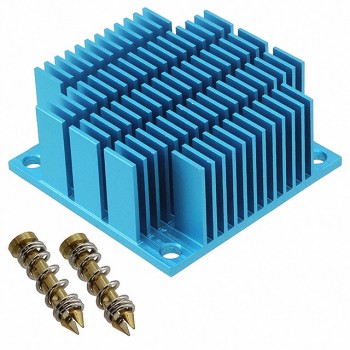

HOT ATS-09F-09-C1-R0
