2SC3649T-TD-H

2SC3649T-TD-H

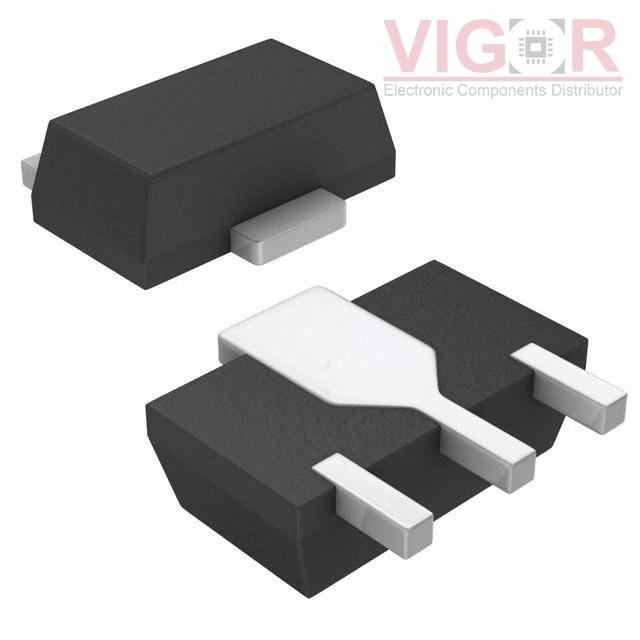

Image is for reference,
please contact us to get the real picture

Part No :

2SC3649T-TD-H

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS NPN 160V 1.5A PCP
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2SC3649T-TD-H PDF
Availability
2147483647 pieces
Unit Price
$0.66000

Current price of 2SC3649T-TD-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC3649T-TD-H Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):160 V
Vce Saturation (Max) @ Ib, Ic:450mV @ 50mA, 500mA
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 100mA, 5V
Power - Max:500 mW
Frequency - Transition:120MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

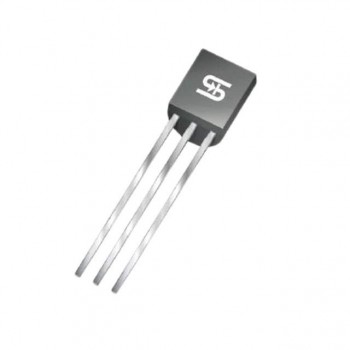

HOT BC547B B1G

BC547B B1G

TRANSISTOR, NPN, 45V, 0.1A, 200A
HOT TIP48G

TIP48G

TRANS NPN 300V 1A TO220AB

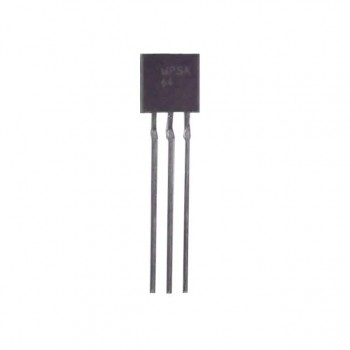

HOT BC556ABK
