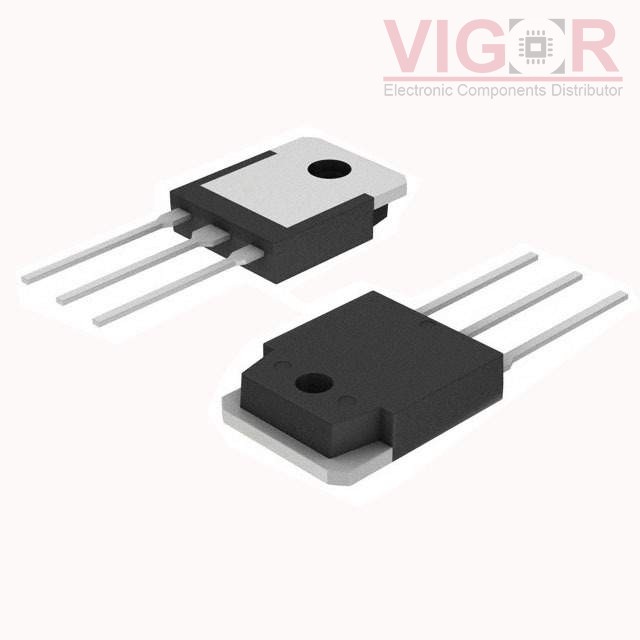

2SD2389

2SD2389

Image is for reference,
please contact us to get the real picture

Part No :

2SD2389

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS NPN DARL 150V 8A TO3P
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2SD2389 PDF
Availability
245 pieces
Unit Price
$2.72000

Current price of 2SD2389 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD2389 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):150 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 6mA, 6A
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:5000 @ 6A, 4V
Power - Max:80 W
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

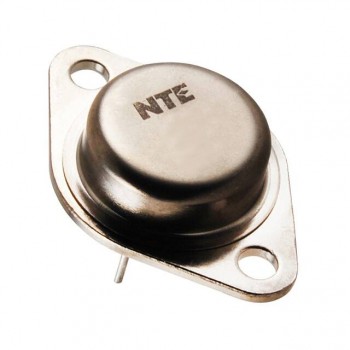

HOT NTE181MP

NTE181MP

TRANS NPN 100V 30A TO3
HOT 2SD1801T-TL-E

2SD1801T-TL-E

TRANS NPN 50V 2A 2-TP-FA

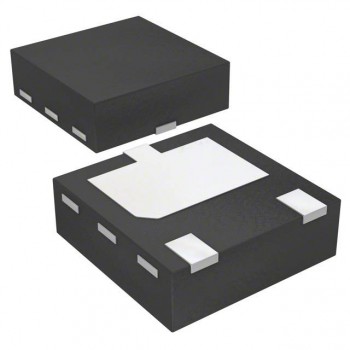

HOT PBSS4612PA,115
