Type | Description |
---|---|
Series: | BERGSTIK® II |
Package: | Bag |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 16 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Unshrouded |
Mounting Type: | Through Hole |
Termination: | Kinked Pin, Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.318" (8.08mm) |
Contact Length - Post: | 0.120" (3.05mm) |
Overall Contact Length: | 0.538" (13.67mm) |
Insulation Height: | 0.100" (2.54mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT) |
Features: | - |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |

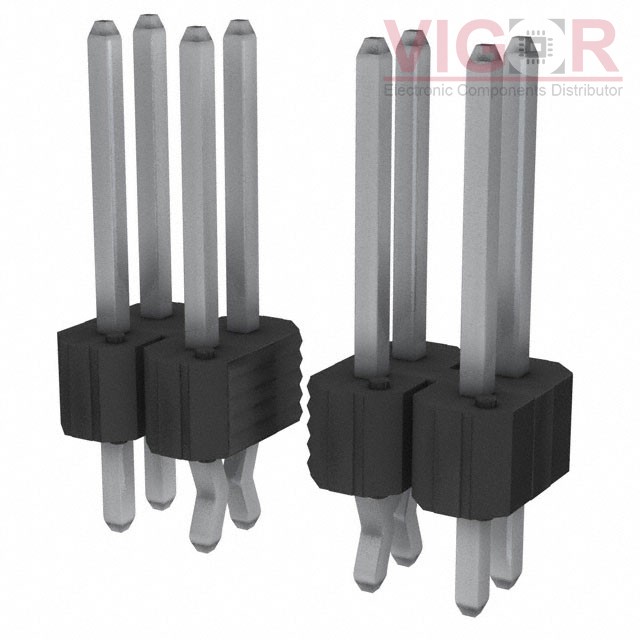

CONN HEADER VERT 16POS 2.54MM
