Type | Description |
---|---|
Series: | TTSHSCM-V |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.039" (1.00mm) |
Number of Positions: | 3 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Unshrouded |
Mounting Type: | Surface Mount |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.020" (0.51mm) |
Contact Length - Post: | - |
Overall Contact Length: | - |
Insulation Height: | 0.059" (1.50mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | Flash |
Contact Finish - Post: | Gold |
Contact Material: | Phosphor Bronze |
Insulation Material: | Liquid Crystal Polymer (LCP) |
Features: | - |
Operating Temperature: | -40°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 1A |
Voltage Rating: | - |

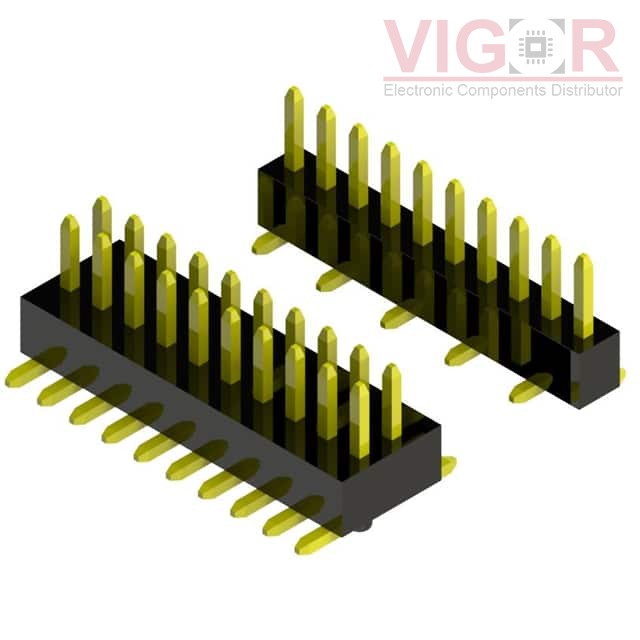

THICKER TERMINAL STRIP HEADER
