Type | Description |
---|---|
Series: | AMPMODU System 50 |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.050" (1.27mm) |
Number of Positions: | 6 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Shrouded - 2 Wall |
Mounting Type: | Through Hole, Right Angle |
Termination: | Solder |
Fastening Type: | Latch Holder |
Contact Length - Mating: | 0.125" (3.18mm) |
Contact Length - Post: | 0.100" (2.54mm) |
Overall Contact Length: | - |
Insulation Height: | 0.190" (4.83mm) |
Contact Shape: | Circular |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Thermoplastic |
Features: | Board Guide |
Operating Temperature: | -65°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | 30VAC |

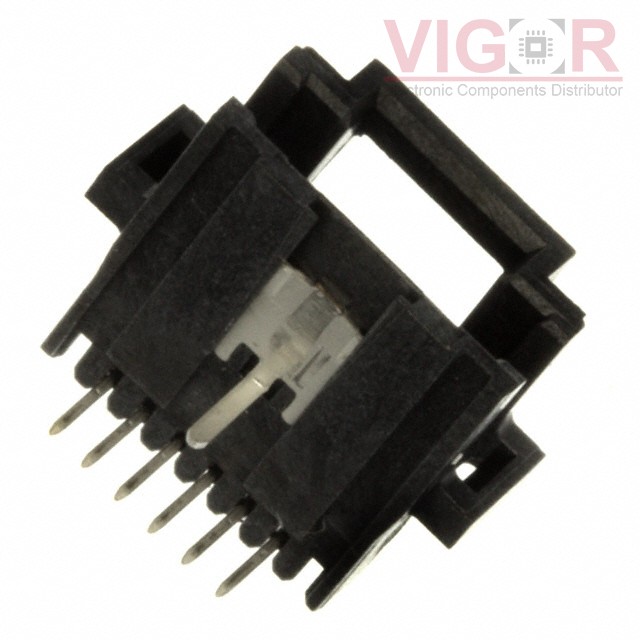

CONN HEADER R/A 6POS 1.27MM
