CP3504P1V00-S-NH

CP3504P1V00-S-NH

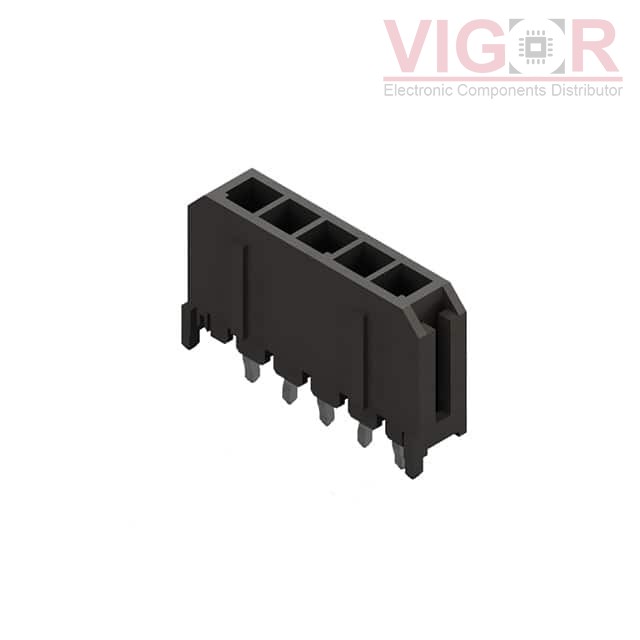

Image is for reference,
please contact us to get the real picture

Part No :

CP3504P1V00-S-NH

Manufacturer
CviLux
Description
4 POS 3.00MM(.118) SINGLE ROW ST
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
CP3504P1V00-S-NH PDF
Availability
6140 pieces
Unit Price
$0.30000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CP3504P1V00-S-NH is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

CP3504P1V00-S-NH Specifications
Type Description
Series:CP35
Package:Tube
Part Status:Active
Connector Type:Plug
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.388" (9.86mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):7A
Voltage Rating:600VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

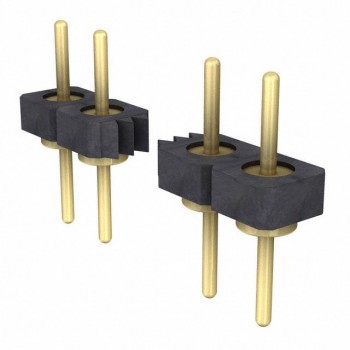

HOT BBL-130-G-E

BBL-130-G-E

CONN HEADER VERT 30POS 2.54MM
HOT N2550-5002-RB

N2550-5002-RB

CONN HEADER R/A 50POS 2.54MM

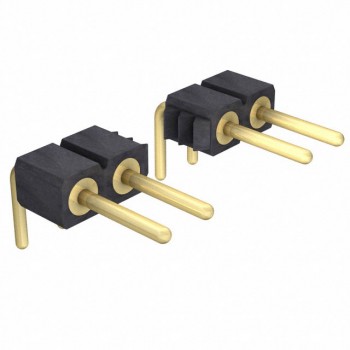

HOT 800-10-025-20-001101
