Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 207444-9 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

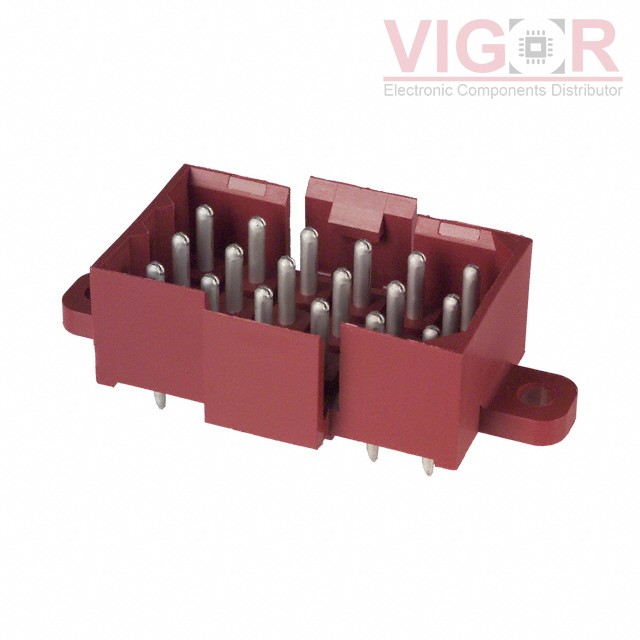

Type | Description |
---|---|
Series: | Metrimate |
Package: | Tray |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.197" (5.00mm) |
Number of Positions: | 18 |
Number of Rows: | 3 |
Row Spacing - Mating: | 0.197" (5.00mm) |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Latch Lock |
Contact Length - Mating: | - |
Contact Length - Post: | 0.181" (4.60mm) |
Overall Contact Length: | - |
Insulation Height: | 0.464" (11.79mm) |
Contact Shape: | Circular |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 150.0µin (3.81µm) |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Polyamide (PA), Nylon |
Features: | Mounting Flange |
Operating Temperature: | -55°C ~ 130°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black, Red |
Current Rating (Amps): | 7.5A |
Voltage Rating: | 600V |
