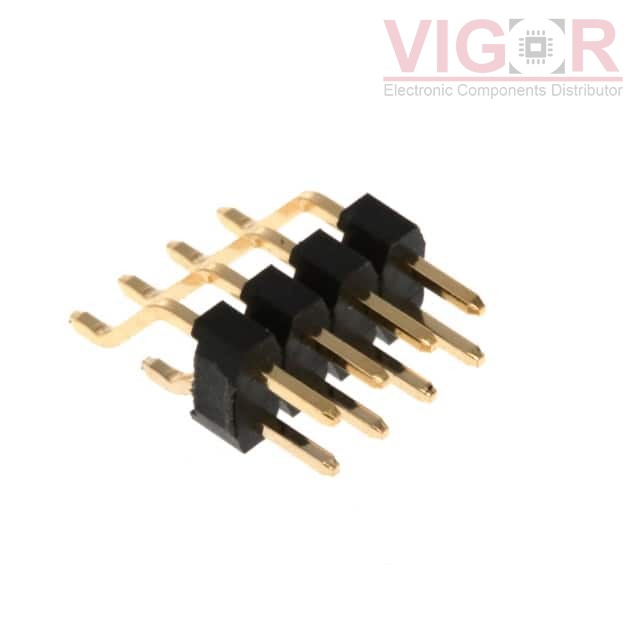

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PM20C04HBDN is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Box |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 8 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.079" (2.00mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Unshrouded |
Mounting Type: | Surface Mount, Right Angle |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.120" (3.05mm) |
Contact Length - Post: | - |
Overall Contact Length: | - |
Insulation Height: | 0.079" (2.00mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | Flash |
Contact Finish - Post: | - |
Contact Material: | Copper Zinc |
Insulation Material: | Polyethylene |
Features: | - |
Operating Temperature: | -40°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | - |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
PIN HEADER, SMT, DUAL ROW, 2.00
