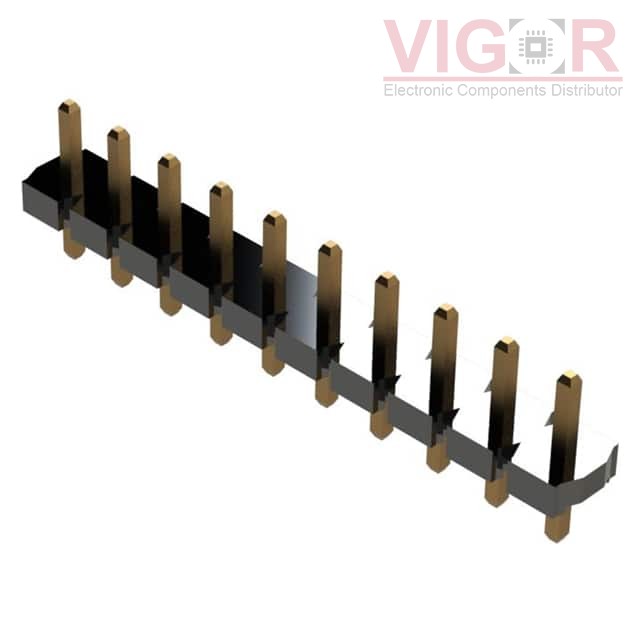

PC200H-02-S-01-T-LF

PC200H-02-S-01-T-LF

Image is for reference,
please contact us to get the real picture

Part No :

PC200H-02-S-01-T-LF

Manufacturer
Major League Electronics
Description
TERMINAL STRIP HEADER
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
PC200H-02-S-01-T-LF PDF
Availability
200 pieces
Unit Price
$0.25000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PC200H-02-S-01-T-LF is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PC200H-02-S-01-T-LF Specifications
Type Description
Series:PC200H
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.150" (3.81mm)
Contact Length - Post:0.180" (4.57mm)
Overall Contact Length:0.430" (10.92mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):7.9A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

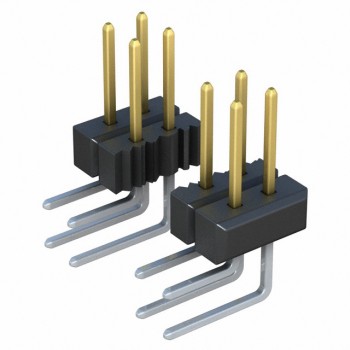

HOT PBC06DBAN

PBC06DBAN

CONN HEADER R/A 12POS 2.54MM

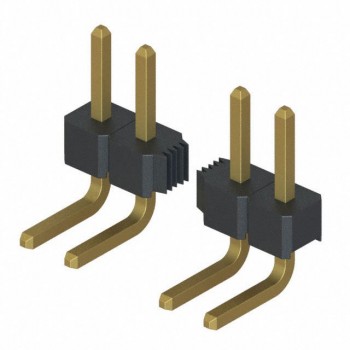

HOT M22-2032005

M22-2032005

CONN HEADER R/A 20POS 2MM

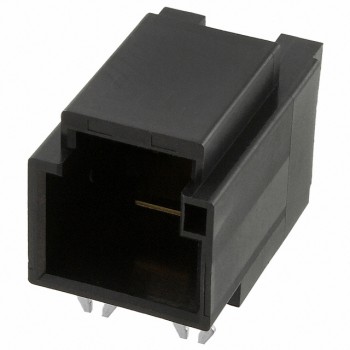

HOT DF60-1P-10.16DS(26)
