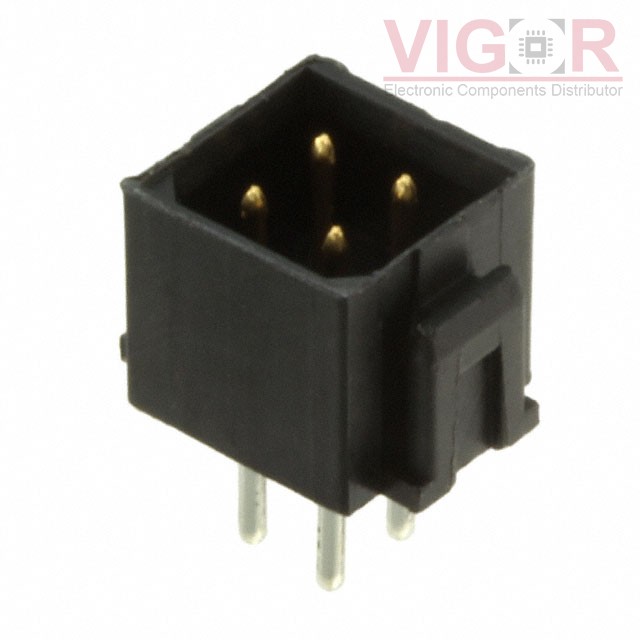

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of M80-8690422 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Datamate L-Tek |
Package: | Tube |
Part Status: | Active |
Connector Type: | Plug |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 4 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.079" (2.00mm) |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Latch Holder |
Contact Length - Mating: | - |
Contact Length - Post: | 0.118" (3.00mm) |
Overall Contact Length: | - |
Insulation Height: | 0.219" (5.56mm) |
Contact Shape: | Circular |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 29.5µin (0.75µm) |
Contact Finish - Post: | Tin-Lead |
Contact Material: | Phosphor Bronze |
Insulation Material: | Polyester, Glass Filled |
Features: | - |
Operating Temperature: | -55°C ~ 125°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 2.2A |
Voltage Rating: | 800V |
