PM20206HBNN

PM20206HBNN

Image is for reference,
please contact us to get the real picture

Part No :

PM20206HBNN

Manufacturer
RIA Connect / METZ CONNECT
Description
PIN HEADER, SMT, SINGLE ROW, .10
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
PM20206HBNN PDF
Availability
2719 pieces
Unit Price
$0.48000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PM20206HBNN is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PM20206HBNN Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.118" (3.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyethylene
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0877591650

0877591650

CONN HEADER SMD 16POS 2MM

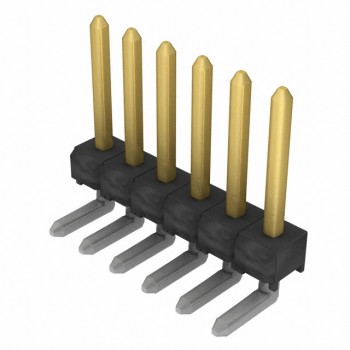

HOT TSW-106-25-F-S-RA
