Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 215307-8 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

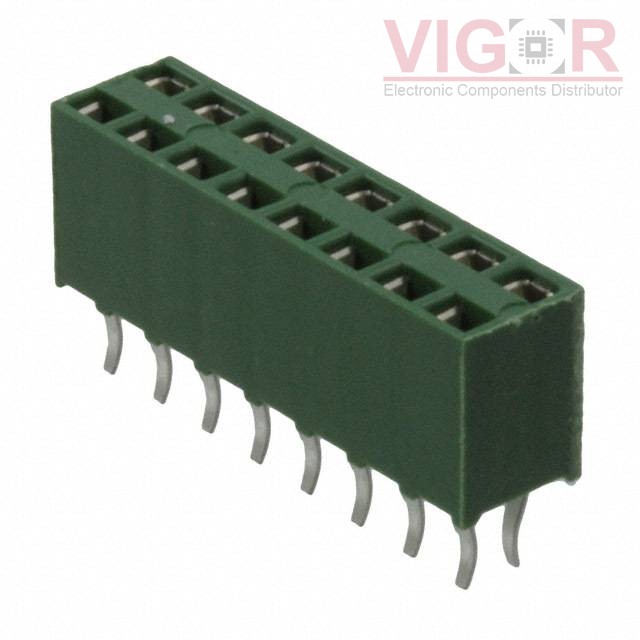

Type | Description |
---|---|
Series: | AMPMODU HV-100 |
Package: | Tray |
Part Status: | Active |
Connector Type: | Receptacle |
Contact Type: | Female Socket |
Style: | Board to Board |
Number of Positions: | 16 |
Number of Positions Loaded: | All |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Mounting Type: | Through Hole |
Termination: | Kinked Pin, Solder |
Fastening Type: | Push-Pull |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 31.5µin (0.80µm) |
Insulation Color: | Green |
Insulation Height: | 0.276" (7.00mm) |
Contact Length - Post: | 0.122" (3.10mm) |
Operating Temperature: | - |
Material Flammability Rating: | UL94 V-0 |
Contact Finish - Post: | Tin |
Mated Stacking Heights: | - |
Ingress Protection: | - |
Features: | - |
Current Rating (Amps): | - |
Voltage Rating: | - |
