ED3001/7-KD

ED3001/7-KD

Image is for reference,
please contact us to get the real picture

Part No :

ED3001/7-KD

Manufacturer
On-Shore Technology, Inc.
Description
TERM BLOCK 7POS 45DEG 5MM PCB
Catalog
Terminal Blocks - Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
ED3001/7-KD PDF
Availability
0 pieces
Unit Price
$2.46380

Current price of ED3001/7-KD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED3001/7-KD Specifications
Type Description
Series:ED3001/KD
Package:Bulk
Part Status:Active
Number of Levels:1
Positions Per Level:7
Pitch:0.197" (5.00mm)
Mating Orientation:45° (135°) Angle with Board
Current:16 A
Voltage:300 V
Wire Gauge:14-28 AWG
Mounting Type:Through Hole
Wire Termination:Screwless - Leg Spring, Push-In Spring
Features:Interlocking (Side), Lever Actuated
Color:Gray, Slate
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

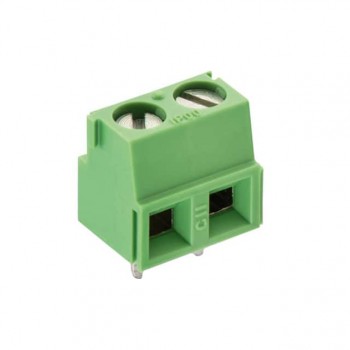

HOT 691213510002

691213510002

5.08 MM TERMINAL BLOCK, HORIZONT

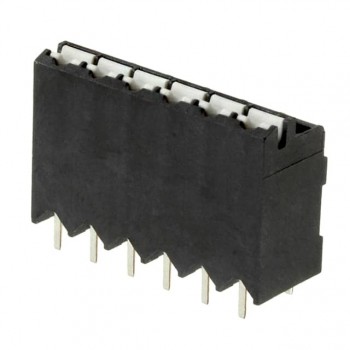

HOT 1823230

1823230

TERM BLK 6P TOP ENTRY 3.5MM PCB

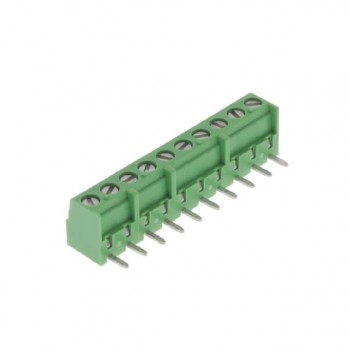

HOT 691243300010
