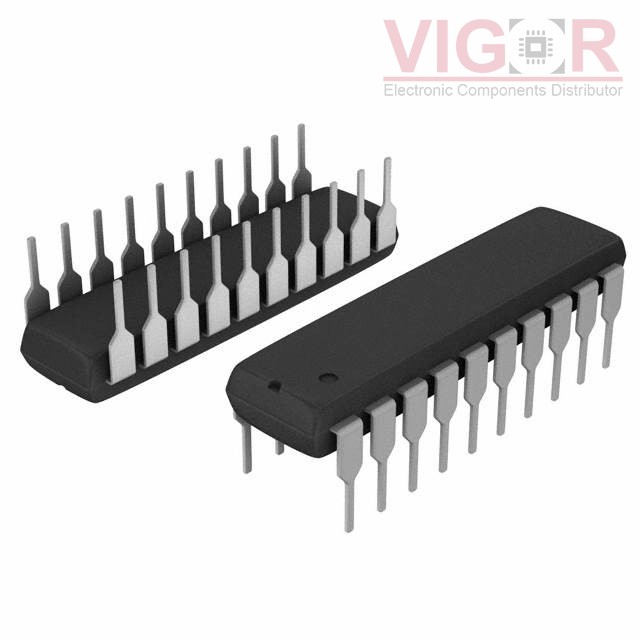

Z8F0421PH020SG

Z8F0421PH020SG

Image is for reference,
please contact us to get the real picture

Part No :

Z8F0421PH020SG

Manufacturer
Zilog / Littelfuse
Description
IC MCU 8BIT 4KB FLASH 20DIP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
Z8F0421PH020SG PDF
Availability
3888 pieces
Unit Price
$2.46789

Current price of Z8F0421PH020SG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z8F0421PH020SG Specifications
Type Description
Series:Encore!® XP®
Package:Tube
Part Status:Active
Core Processor:eZ8
Core Size:8-Bit
Speed:20MHz
Connectivity:I²C, IrDA, UART/USART
Peripherals:Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:11
Program Memory Size:4KB (4K x 8)
Program Memory Type:FLASH
EEPROM Size:-
RAM Size:1K x 8
Voltage - Supply (Vcc/Vdd):2.7V ~ 3.6V
Data Converters:A/D 2x10b
Oscillator Type:Internal
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT XMC1404Q048X0200AAXUMA1

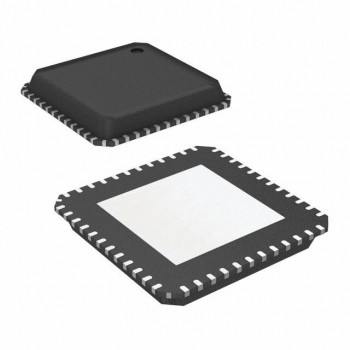

XMC1404Q048X0200AAXUMA1

IC MCU 32BIT 200KB FLASH 48VQFN
HOT R5F100EEANA#40

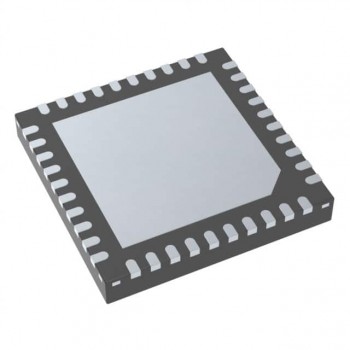

R5F100EEANA#40
