HI-8196PCIF

HI-8196PCIF

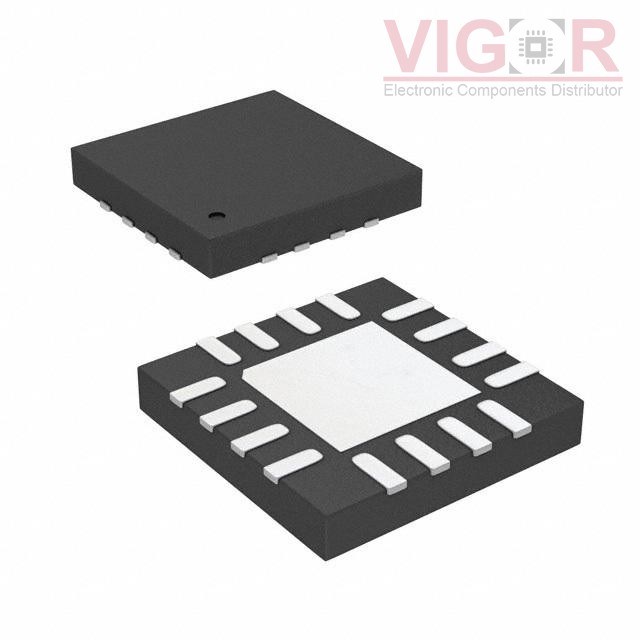

Image is for reference,
please contact us to get the real picture

Part No :

HI-8196PCIF

Manufacturer
Holt Integrated Circuits, Inc.
Description
IC ANALOG SWITCH 4 X SPST 16CSP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
HI-8196PCIF PDF
Availability
161 pieces
Unit Price
$4.17692

Current price of HI-8196PCIF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HI-8196PCIF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):31Ohm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±3V ~ 10V
Switch Time (Ton, Toff) (Max):35ns, 20ns
-3db Bandwidth:-
Charge Injection:-10pC
Channel Capacitance (CS(off), CD(off)):12pF, 46pF
Current - Leakage (IS(off)) (Max):5nA (Max)
Crosstalk:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WQFN Exposed Pad, CSP
Supplier Device Package:16-CSP (5x5)
