ALD4212PCL

Image is for reference,
please contact us to get the real picture

Part No :: ALD4212PCL

Manufacturer: Advanced Linear Devices, Inc.

Description: IC SW ANLG QUAD SPST 16DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: ALD4212PCL PDF

Availability: 4612 pieces

Unit Price: ~~$6.23640~~

Current price of ALD4212PCL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALD4212PCL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	135Ohm
Channel-to-Channel Matching (ΔRon):	2.7Ohm
Voltage - Supply, Single (V+):	3V ~ 12V
Voltage - Supply, Dual (V±):	±1.5V ~ 6V
Switch Time (Ton, Toff) (Max):	130ns, 130ns
-3db Bandwidth:	-
Charge Injection:	0.2pC
Channel Capacitance (CS(off), CD(off)):	3pF, 3pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-90dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

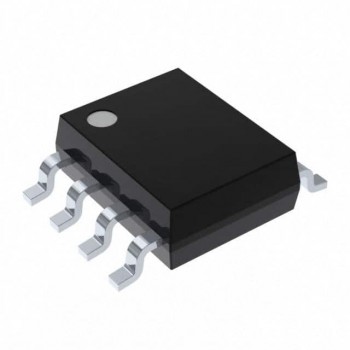

MAX325CSA+

IC SWITCH DUAL SPST 8SOIC

HOT

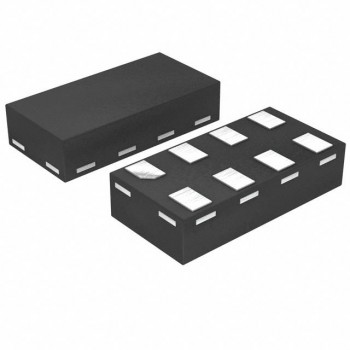

74HC2G66GT,115

IC ANLG SWITCH SPST DUAL 8XSON

HOT

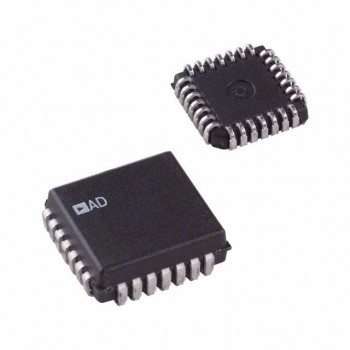

ADG406BPZ
