PC81713NIP1B

PC81713NIP1B

Image is for reference,
please contact us to get the real picture

Part No :

PC81713NIP1B

Manufacturer
Socle Technology Corporation
Description
OPTOISOLATOR
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
PC81713NIP1B PDF
Availability
0 pieces
Unit Price
$0.33972

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PC81713NIP1B is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PC81713NIP1B Specifications
Type Description
Series:PC8171
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 500µA
Current Transfer Ratio (Max):600% @ 500µA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):10 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 5962-9085401HPC

5962-9085401HPC

OPTOISO 1.5KV TRANS W/BASE 8DIP

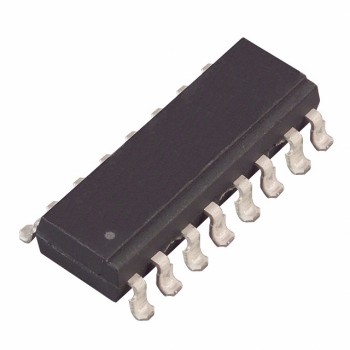

HOT ILQ620GB-X009

ILQ620GB-X009

OPTOISO 5.3KV 4CH TRANS 16SMD

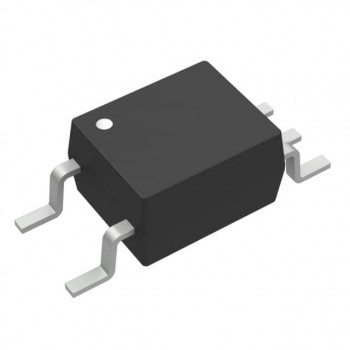

HOT HCPL-M700-000E
