PC354N1J000F

PC354N1J000F

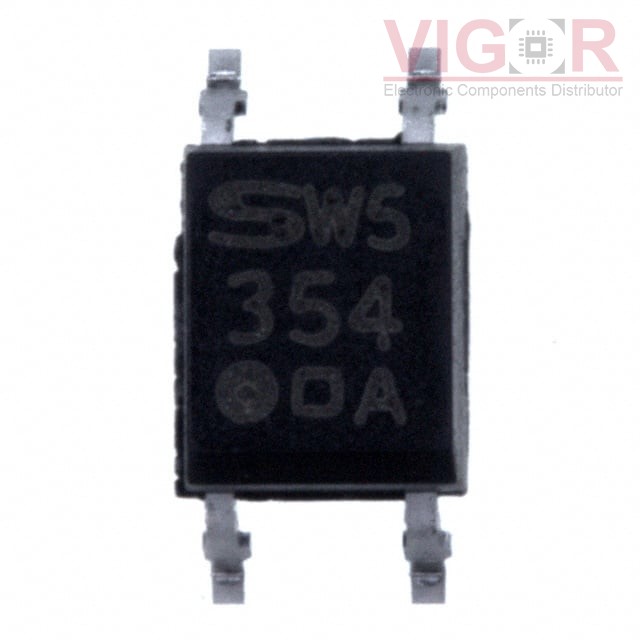

Image is for reference,
please contact us to get the real picture

Part No :

PC354N1J000F

Manufacturer
Socle Technology Corporation
Description
OPTOISOLATOR 3.75KV TRANS 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
PC354N1J000F PDF
Availability
17958 pieces
Unit Price
$1.30000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PC354N1J000F is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PC354N1J000F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 1mA
Current Transfer Ratio (Max):150% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
