PUC0505D1B

Image is for reference,
please contact us to get the real picture

Part No :: PUC0505D1B

Manufacturer: Flex Power Modules

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PUC0505D1B PDF

Availability: 253 pieces

Unit Price: ~~$7.59000~~

Current price of PUC0505D1B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PUC0505D1B Specifications

Type	Description
Series:	PUC-1B (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	5V
Voltage - Input (Max):	24V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	6 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	5-SIP Module
Size / Dimension:	0.78" L x 0.28" W x 0.45" H (19.7mm x 7.1mm x 11.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cURus, IEC, UL
Standard Number:	62368-1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

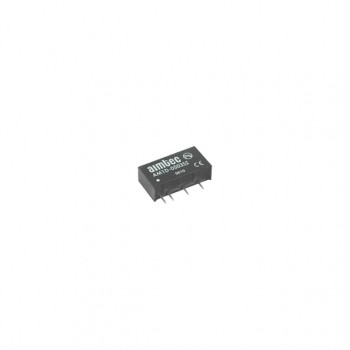

AM1D-1515SH40Z

DC DC CONVERTER 15V 1W

HOT

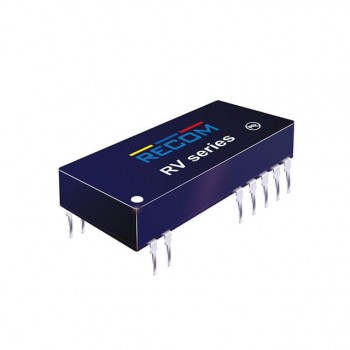

RV-0912S

DC DC CONVERTER 12V 2W

HOT

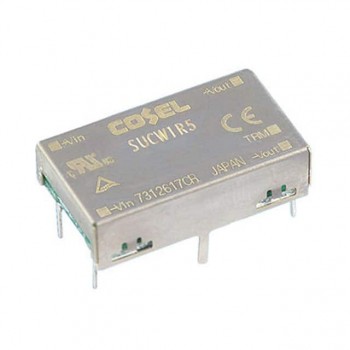

SUCW1R52412C
