Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PKM7116ZAPIPLHS is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|

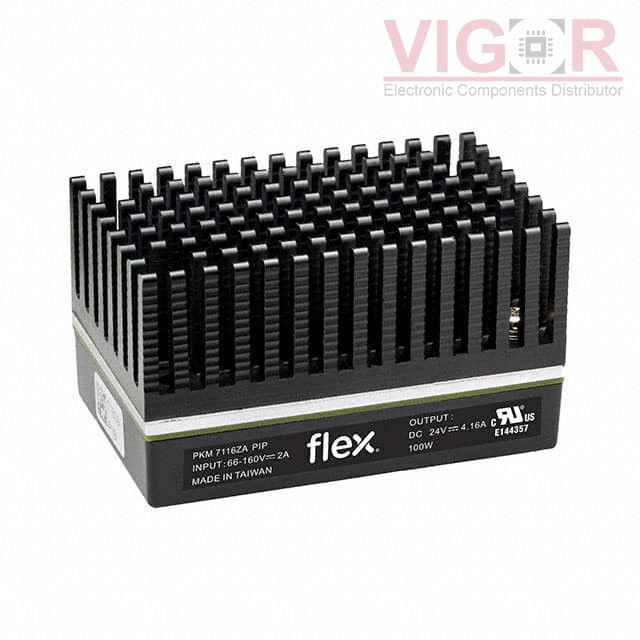

Series: | PKM 7000A (150W) |
Package: | Tray |
Part Status: | Active |
Type: | Isolated Module |
Number of Outputs: | 1 |
Voltage - Input (Min): | 66V |
Voltage - Input (Max): | 160V |
Voltage - Output 1: | 24V |
Voltage - Output 2: | - |
Voltage - Output 3: | - |
Voltage - Output 4: | - |
Current - Output (Max): | 4.16A |
Power (Watts): | 100 W |
Voltage - Isolation: | 3 kV |
Applications: | ITE (Commercial), Railway |
Features: | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense |
Operating Temperature: | -40°C ~ 115°C (With Derating) |
Efficiency: | 89% |
Mounting Type: | Through Hole |
Package / Case: | Quarter Brick |
Size / Dimension: | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) |
Supplier Device Package: | Quarter Brick |
Control Features: | Enable, Active High |
Approval Agency: | CB, CSA, EN, IEC, TUV, UL |
Standard Number: | 50155; 62368-1 |
