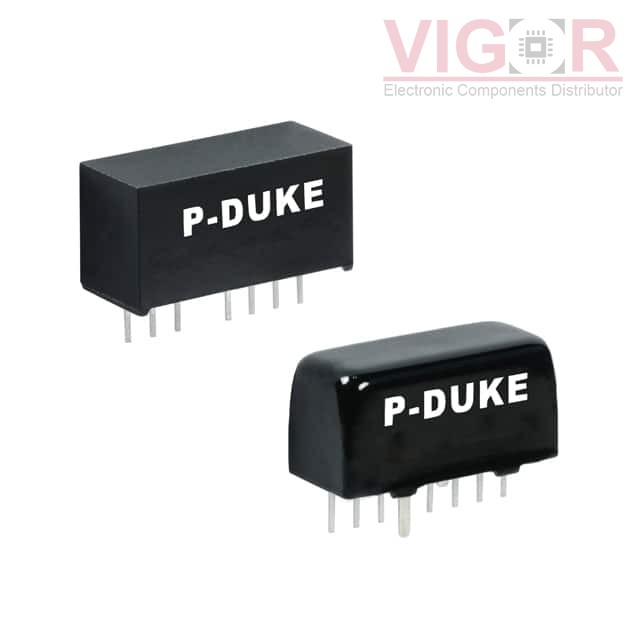

PDL09-24S09M

Image is for reference,
please contact us to get the real picture

Part No :: PDL09-24S09M

Manufacturer: P-Duke Technology, Inc.

Description: ISOLATED / 9W/ VOUT:9

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PDL09-24S09M PDF

Availability: 553 pieces

Unit Price: ~~$30.82000~~

Current price of PDL09-24S09M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PDL09-24S09M Specifications

Type	Description
Series:	PDL09 (9W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	9 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, Standby Output
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module, 10 Leads
Size / Dimension:	0.83" L x 0.38" W x 0.44" H (21.0mm x 9.6mm x 11.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, CE, cURus
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

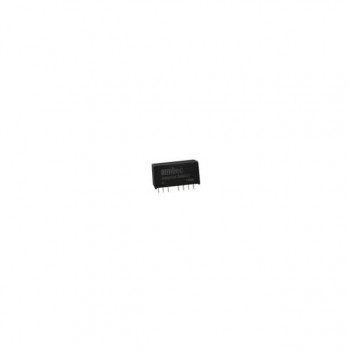

AM6GH-2415DZ

DC DC CONVERTER 15V -15V 6W

HOT

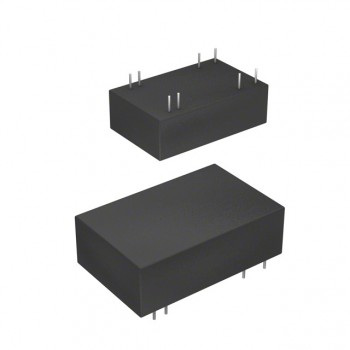

REC3-0505SRW/H2/A/CTRL

DC DC CONVERTER 5V 3W

HOT

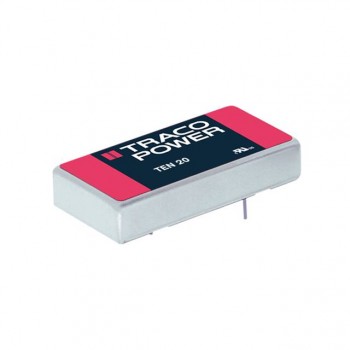

TEN 20-2413
