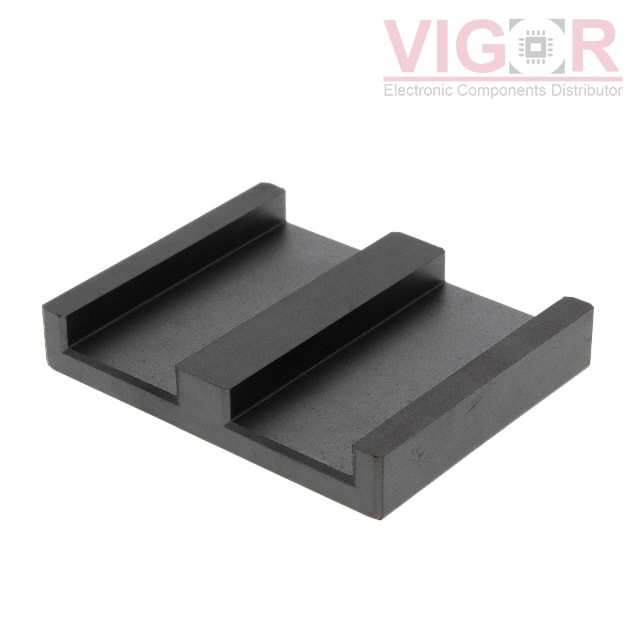

9498207002

Image is for reference,
please contact us to get the real picture

Part No :: 9498207002

Manufacturer: Fair-Rite Products Corp.

Description: 98 PLANAR E CORE SET

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 12 - Aug 16 2025

DataSheet: 9498207002 PDF

Availability: 30 pieces

Unit Price: ~~$15.48000~~

Current price of 9498207002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9498207002 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	-
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2400
Core Factor (ΣI/A) mm^-1:	15.4
Effective Length (le) mm:	80.7
Effective Area (Ae) mm²:	520
Minimum Core Cross Section (Amin) mm²:	515
Effective Magnetic Volume (Ve) mm³:	41500
Finish:	Uncoated
Height:	10.34mm
Length:	64.01mm
Width:	51.00mm
