MAP5KE85AE3

MAP5KE85AE3

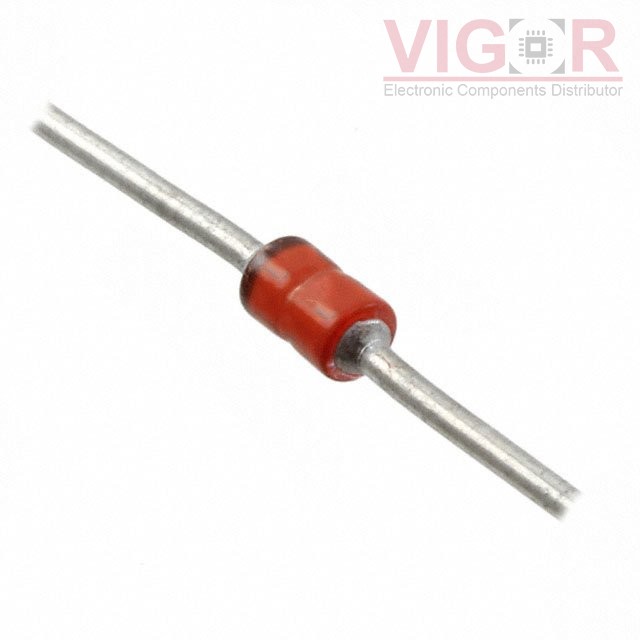

Image is for reference,
please contact us to get the real picture

Part No :

MAP5KE85AE3

Manufacturer
Microsemi
Description
TVS DIODE 85V 137V DO204AL
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
MAP5KE85AE3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MAP5KE85AE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAP5KE85AE3 Specifications
Type Description
Series:Military, MIL-PRF-19500
Package:Bulk
Part Status:Obsolete
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):85V
Voltage - Breakdown (Min):94.4V
Voltage - Clamping (Max) @ Ipp:137V
Current - Peak Pulse (10/1000µs):3.6A
Power - Peak Pulse:500W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-204AL (DO-41)
