Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of GFB0812SHG-F00 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

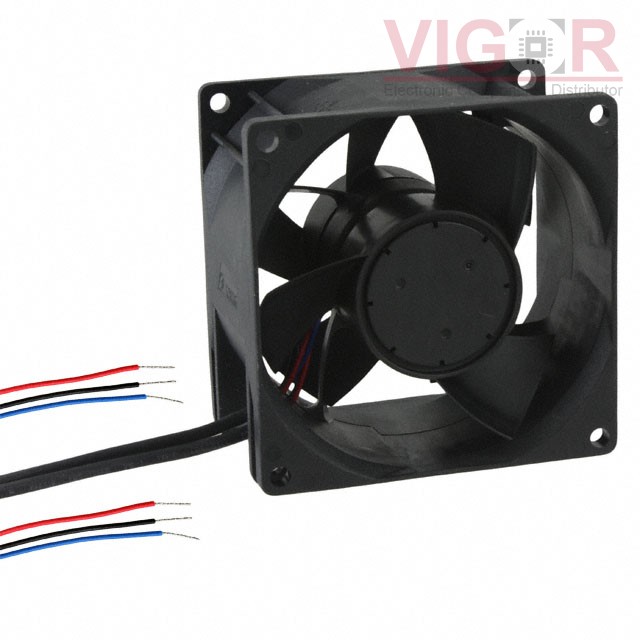

Type | Description |
---|---|
Series: | GFB |
Package: | Box |
Part Status: | Obsolete |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 80mm L x 80mm H |
Width: | 50.80mm |
Air Flow: | 68.6 CFM (1.92m³/min) |
Static Pressure: | 0.445 in H2O (110.8 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial (Dual) |
Features: | Locked Rotor Protection, Speed Sensor (Tach) |
Noise: | 53.0dB(A) |
Power (Watts): | 8.76 W |
RPM: | 4200 Front, 3750 Rear |
Termination: | 3 Wire Leads per Fan |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 140°F (-10 ~ 60°C) |
Approval Agency: | CE, CSA, UL, VDE |
Weight: | 0.364 lb (165.11 g) |
