PC4H510NIP

PC4H510NIP

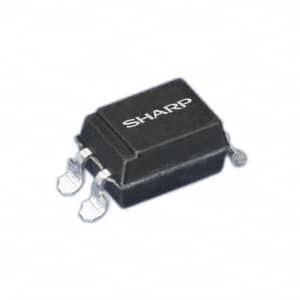

Image is for reference,
please contact us to get the real picture

Part No :

PC4H510NIP

Manufacturer
Sharp Microelectronics
Description
OPTOISOLATOR 2.5KV TRANS 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
PC4H510NIP PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC4H510NIP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC4H510NIP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):40% @ 5mA
Current Transfer Ratio (Max):240% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):350V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-25°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SOIC (0.209", 5.30mm Width)
Supplier Device Package:4-SOP
