PC725V0NIZX

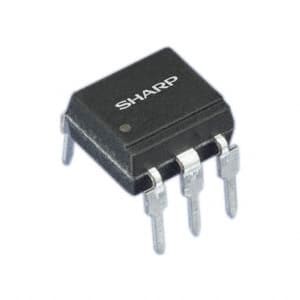

Image is for reference,
please contact us to get the real picture

Part No :: PC725V0NIZX

Manufacturer: Sharp Microelectronics

Description: OPTOISO 5KV DARL W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2024

DataSheet: PC725V0NIZX PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PC725V0NIZX is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PC725V0NIZX Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	1000% @ 1mA
Current Transfer Ratio (Max):	15000% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	100µs, 20µs
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	300V
Current - Output / Channel:	150mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	1.2V
Operating Temperature:	-25°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD

Please confirm the specifications of the products when ordering.
