WP7A-S024VA1-R8000

WP7A-S024VA1-R8000

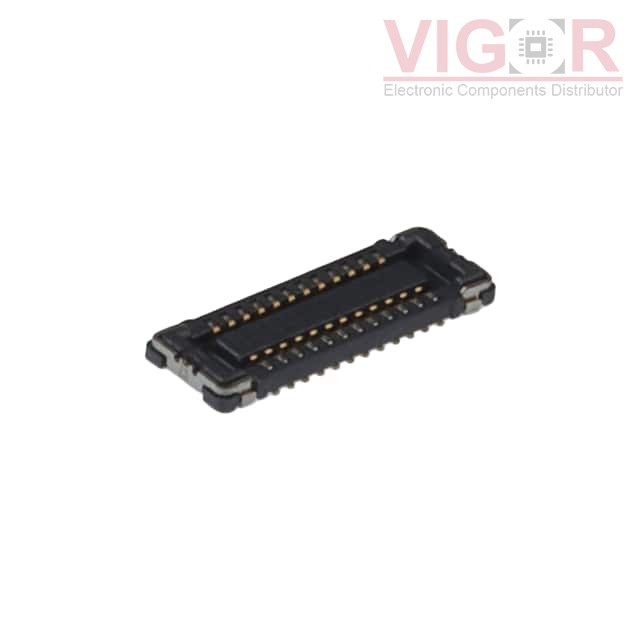

Image is for reference,
please contact us to get the real picture

Part No :

WP7A-S024VA1-R8000

Manufacturer
JAE Electronics
Description
CONN RCPT 24POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
WP7A-S024VA1-R8000 PDF
Availability
7012 pieces
Unit Price
$0.55000

Current price of WP7A-S024VA1-R8000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WP7A-S024VA1-R8000 Specifications
Type Description
Series:WP7
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle, Center Strip Contacts
Number of Positions:24
Pitch:0.016" (0.40mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Solder Retention
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
Mated Stacking Heights:0.7mm
Height Above Board:0.028" (0.71mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
