1-1747277-3

1-1747277-3

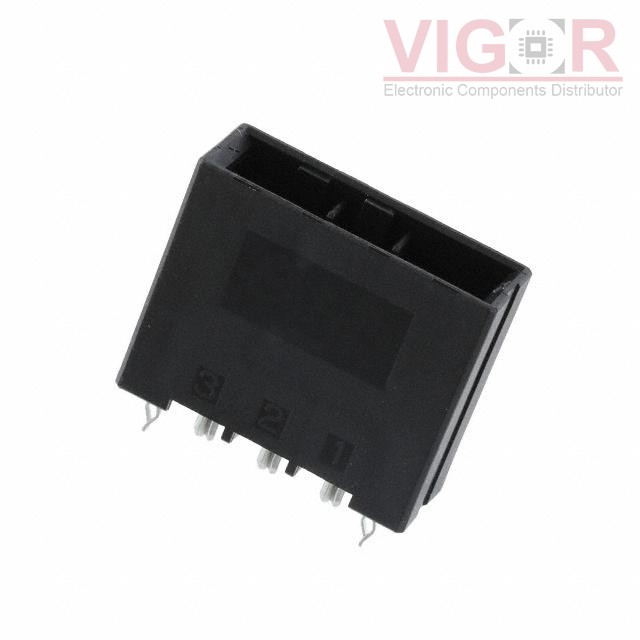

Image is for reference,
please contact us to get the real picture

Part No :

1-1747277-3

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 3POS 6.35MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1-1747277-3 PDF
Availability
0 pieces
Unit Price
$3.89000

Current price of 1-1747277-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-1747277-3 Specifications
Type Description
Series:Dynamic D-4200
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.250" (6.35mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.937" (23.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:600V
