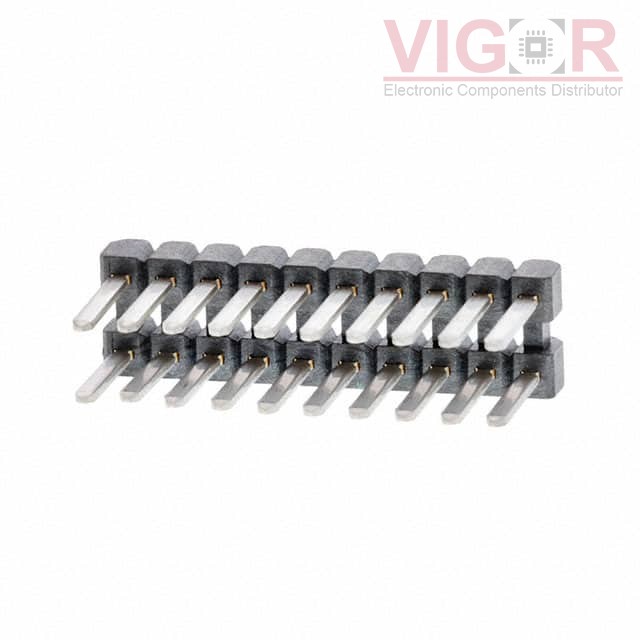

Image is for reference,
please contact us to get the real picture

Part No :

0757571401

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 20POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
0757571401 PDF
Availability
8 pieces
Unit Price
$3.93000

Current price of 0757571401 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0757571401 Specifications
Type Description
Series:MX150 75757
Package:Tube
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Blade
Pitch - Mating:0.138" (3.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.236" (6.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.441" (11.20mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.738" (18.75mm)
Insulation Height:0.177" (4.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:59.0µin (1.50µm)
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
