4397-0-00-15-00-00-03-0

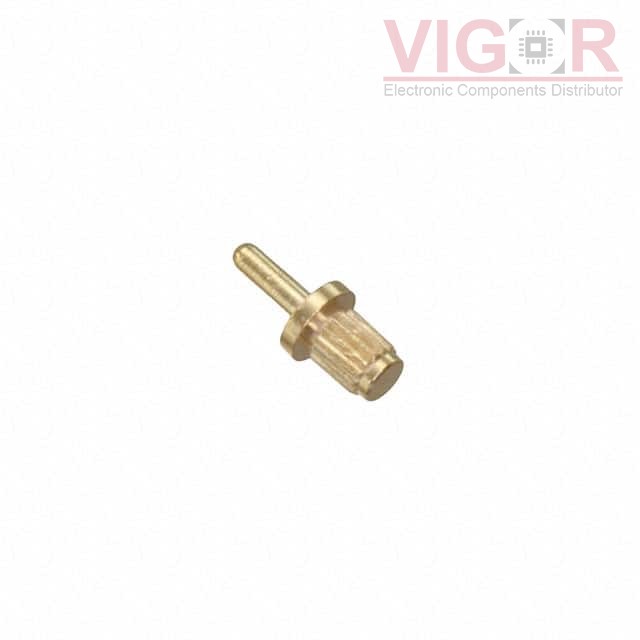

Image is for reference,
please contact us to get the real picture

Part No :: 4397-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: PRESS-FIT PCB PIN FOR A NON-PLAT

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: 4397-0-00-15-00-00-03-0 PDF

Availability: 1821 pieces

Unit Price: ~~$0.47000~~

Current price of 4397-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4397-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	43974
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.025" (0.64mm) Dia
Pin Size - Below Flange:	0.043" (1.09mm) Dia
Length - Above Flange:	0.085" (2.16mm)
Length - Below Flange:	0.080" (2.03mm)
Length - Overall:	0.180" (4.57mm)
Flange Diameter:	0.072" (1.83mm)
Mounting Hole Diameter:	0.049" (1.24mm)
Mounting Type:	Through Hole
Termination:	Crimp
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
